Consider the following block diagram representing the unity feedback control system, as shown in Fig. 3. F(s) Y(s) G(s) Figure 3: The Unity Feedback Control System. i) Show that the overall transfer function is given by $\frac{G(s)}{1+G(s)}$ ii) Given that $G(s) = \frac{6s+2}{s^2-2s+1}$ Find the poles and zeros of the overall transfer function.
Added by Christine W.
Close
Step 1
In this case, we have: H(s) = G(s) * F(s) * Y(s) Since it is a unity feedback system, F(s) = 1. Therefore, the overall transfer function becomes: H(s) = G(s) * Y(s) Show more…
Show all steps
Your feedback will help us improve your experience
Jason Horton and 58 other Calculus 3 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

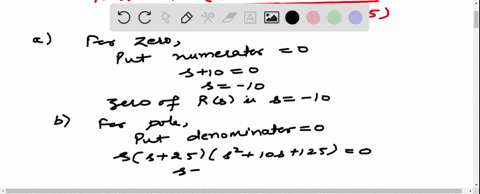

Determine for the transfer function: $$ R(s)=\frac{400(s+10)}{s(s+25)\left(s^{2}+10 s+125\right)} $$ (a) the zero and (b) the poles. Show the poles and zero on a pole-zero diagram.
Determine the amplitude and phase shift for the function, F(X) = sin (x) + 2 and sketch at least one cycle of the graph. Identify five points on the graph.
Babita K.

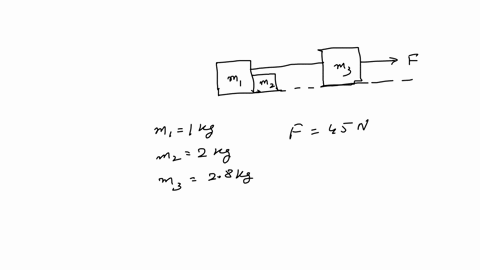

Assume the three blocks (m1 = 1.0 kg, m2 = 2.0 kg, and m3 = 2.8 kg) portrayed in the figure below move on a frictionless surface and a force F = 45 N acts as shown on the 2.8-kg block.If we consider the system to consist of all three blocks plus the connecting rope, the total mass of the system is
