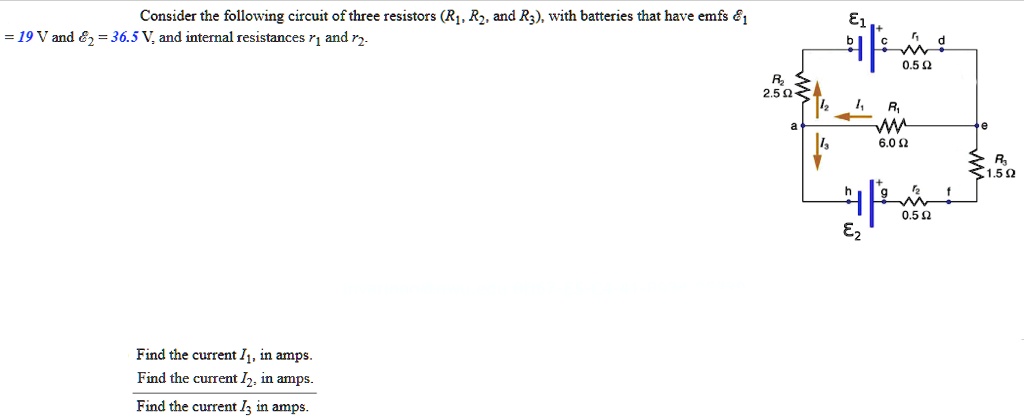

Consider the following circuit of three resistors (R1, R2, and R3), with batteries that have emfs ?1 = 19 V and ?2 = 36.5 V, and internal resistances r1 and r2. Find the current I1, in amps. Find the current I2, in amps. Find the current I3 in amps.
Added by Emily V.
Close
Step 1
First, we need to find the equivalent resistance of the circuit. Since R1 and R2 are in series, their equivalent resistance is R1 + R2. Then, this equivalent resistance is in parallel with R3. So, the total equivalent resistance (Req) can be calculated as Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 89 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Consider the circuit shown in the diagram below. The battery has a voltage V = 12.0 V and the resistors have the following values: R1 = 1.11 ̐; R2 = 2.22 ̐; R3 = 5.55 ̐; R4 = 3.33 ̐ How much current flows through each of the four resistors?
Suman K.
Consider the circuit shown in the diagram below: The battery has voltage V = 12.0 V and the resistors have the following values. R1 = 4.29 Ω; R2 = 8.58 Ω; R3 = 21.45 Ω; R4 = 12.87 Ω How much current flows through each of the four resistors? I1 = 1.42 A I2 = What is the total current delivered by the battery? What is the voltage across R1? What are the voltages across each of the three parallel resistors?
Ivan K.
Consider the circuit shown in the diagram below. The battery has a voltage V = 12.0 V and the resistors have the following values. R1 = 1.37 ̐; R2 = 2.74 ̐; R3 = 6.85 ̐; R4 = 4.11 ̐ How much current flows through each of the four resistors? What is the total current delivered by the battery? What is the voltage across R1? What are the voltages across each of the three parallel resistors?
Khoobchandra A.
