5. Consider the following diagram where a robot is set up 1 meter from a table. The table top is 1 meter high and 1 meter square. A frame {1} is fixed to the edge of the table as shown. A cube is placed in the center of the table with frame {2} established at the center of the cube as shown. A camera is situated directly above the center of the block 2 meters above the table top with frame {3} attached as shown. Find the homogenous transformation relating each of these frames to the base frame {0}. Find the homogenous transformation relating frame {2} to the camera frame {3}, i.e. ^2T_3.
Added by Chad L.
Close
Step 1
Let's say the robot (base frame {0}) is set up 1 meter from the table, the table is 0.75 meters high and 1 meter square. The cube is placed in the center of the table, and the camera is situated directly above the center of the cube, 0.5 meters above the table Show more…
Show all steps
Your feedback will help us improve your experience
Sri K and 80 other Calculus 3 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Two consecutive frames describe the old (T1) and new (T2) positions and orientations of the end of a 3-DOF robot. The corresponding Jacobian, relating to dz, ͂x, ͂z, is also given. Compute the values of joint differential motion ds1, dθ2, dθ3 of the robot that caused the given frame change. (14 marks)
Adi S.
Four reference frames are shown in the robot workspace of Figure 1: the fixed frame {a}, the end-effector frame {b}, the camera frame {c}, and the workpiece frame {d}. (a) Find Tad and Tcd in terms of the dimensions given in the figure. (b) Find Tab given that

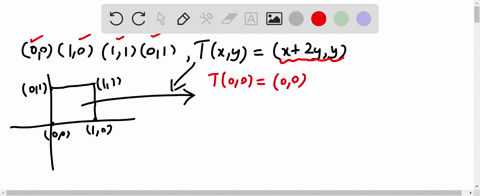

Sketch the image of the unit square with vertices at $(0,0),(1,0),(1,1),$ and (0,1) under the specified transformation. $T$ is the shear given by $T(x, y)=(x+2 y, y)$
