8. Consider the following system represented in state space: \( \dot{x} = Ax + Bu \) Where \( A = \begin{bmatrix} 0 & 1 & 0 \\ 0 & 0 & 1 \\ -6 & -k & -3 \end{bmatrix} \) and \( B = \begin{bmatrix} 0 \\ 0 \\ 1 \end{bmatrix} \) (a) Determine the characteristic equation of the above system. (b) Find the range of \( k \) where this system is stable. Hint: Use Routh-Hurwitz method for (b).

          8. Consider the following system represented in state space:
\( \dot{x} = Ax + Bu \)
Where \( A = \begin{bmatrix} 0 & 1 & 0 \\ 0 & 0 & 1 \\ -6 & -k & -3 \end{bmatrix} \) and \( B = \begin{bmatrix} 0 \\ 0 \\ 1 \end{bmatrix} \)
(a) Determine the characteristic equation of the above system.
(b) Find the range of \( k \) where this system is stable.
Hint: Use Routh-Hurwitz method for (b).

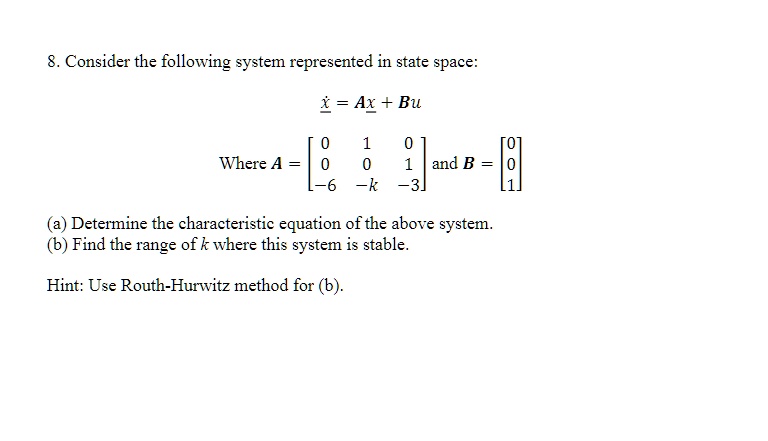

8. Consider the following system represented in state space:
ẋ = Ax + Bu
Where A =
< b m a t r i x > and B =
< b m a t r i x >
(a) Determine the characteristic equation of the above system.
(b) Find the range of k where this system is stable.
Hint: Use Routh-Hurwitz method for (b).
