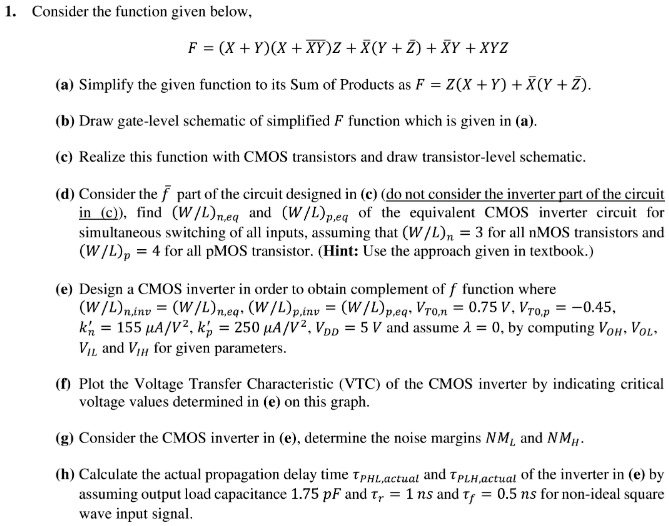

1. Consider the function given below, F = (X + Y)(X +
Added by Thomas G.
Close
Step 1
(a) The given function is already simplified as: \[F = Z(X + Y) + X(Y + 2)\] (b) To draw the gate-level schematic, we can use an AND gate for each product term and an OR gate to sum the terms: ``` AND1 AND2 X ---o----\ Z ---o----\ | >o---| Show more…
