Consider the network of capacitors shown in the figure below. The potential difference across points a and b is 48.0 V. If C = 15.0 nF, what is the charge on the 3C capacitor? a 2C C b C 3C
Added by Dana B.
Close
Step 1
Substitute the given value of \(C = 15.0 nF\) into the formula: \(C_{\text{total}} = \frac{1}{\frac{1}{15.0 \times 10^{-9}} + \frac{1}{3 \times 15.0 \times 10^{-9}} + \frac{1}{2 \times 15.0 \times 10^{-9}}}\). Calculate the total capacitance. Show more…
Show all steps
Your feedback will help us improve your experience
Madhur L and 92 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

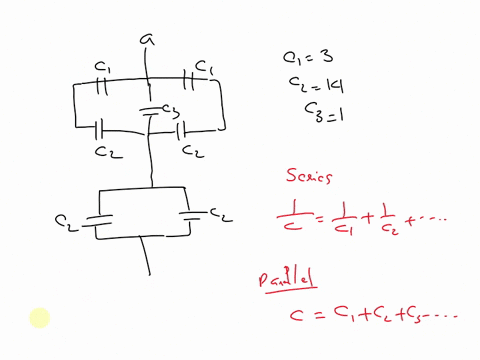

Find the equivalent capacitance between points a and b for the group of capacitors connected as shown in the figure. Take C1 = 3.00μF, C2 = 14.0μF, and C3 = 1.00μF. What charge is stored on C3 if the potential difference between points a and b is 60.0 V?
Madhur L.
(a) Find the equivalent capacitance between points $a$ and $b$ for the group of capacitors connected as shown in Figure P16.46 if $C_{1}=5.00 \mu \mathrm{F}, \quad C_{2}=10.00 \mu \mathrm{F}$ and $C_{3}=2.00 \mu \mathrm{F}$ . (b) If the potential between points $a$ and $b$ is $60.0 \mathrm{V},$ what charge is stored on $C_{3} ?$
