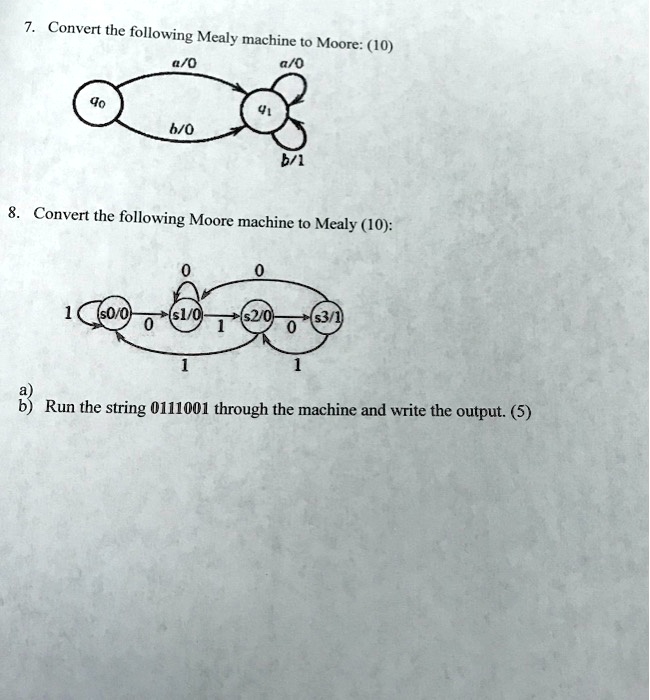

7. Convert the following Mealy machine to Moore: (10) 8. Convert the following Moore machine to Mealy (10): a) b) Run the string 0111001 through the machine and write the output. (5)
Added by Sandra M.
Close
Step 1
s0/0 Show more…
Show all steps
Your feedback will help us improve your experience
Sri K and 80 other Calculus 3 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Find the output string generated by the Moore machine in Exercise 20 with each of these input strings. $$ \begin{array}{llll}{\text { a) } 0101} & {\text { b) } 111111} & {\text { c) } 1101110111}\end{array} $$
Modeling Computation
Finite-State Machines with Output
Construct the state table for the Moore machine with the state diagram shown here. Each input string to a Moore machine $M$ produces an output string. In particular, the output corresponding to the input string $a_{1} a_{2} \ldots a_{k}$ is the string $g\left(s_{0}\right) g\left(s_{1}\right) \ldots g\left(s_{k}\right),$ where $s_{i}=f\left(s_{i-1}, a_{i}\right)$ for $i=1,2, \ldots, k .$
Construct a Moore machine that gives an output of 1 whenever the number of symbols in the input string read so far is divisible by 4 and an output of 0 otherwise.
