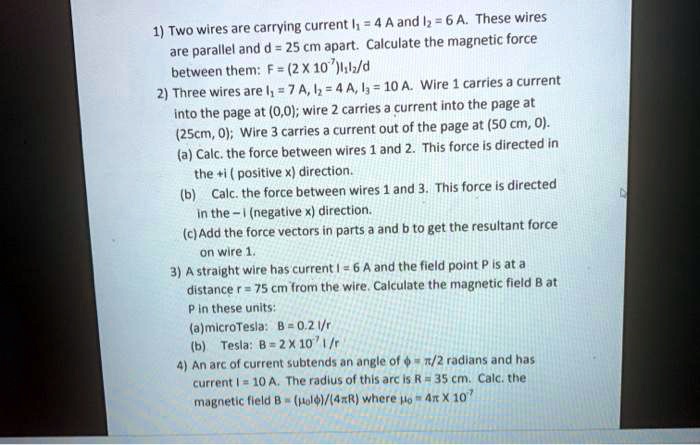

1) Two wires are carrying current I? = 4 A and I? = 6 A. These wires are parallel and d = 25 cm apart. Calculate the magnetic force between them: F = (2 X 10?)I?I?/d 2) Three wires are I? = 7 A, I? = 4 A, I? = 10 A. Wire 1 carries a current into the page at (0,0); wire 2 carries a current into the page at (25cm, 0); Wire 3 carries a current out of the page at (50 cm, 0). (a) Calc. the force between wires 1 and 2. This force is directed in the +i ( positive x) direction. (b) Calc. the force between wires 1 and 3. This force is directed in the - i (negative x) direction. (c) Add the force vectors in parts a and b to get the resultant force on wire 1. 3) A straight wire has current I = 6 A and the field point P is at a distance r = 75 cm from the wire. Calculate the magnetic field B at P in these units: (a) microTesla: B = 0.2 I/r (b) Tesla: B = 2 X 10? I/r 4) An arc of current subtends an angle of ? = ?/2 radians and has current I = 10 A. The radius of this arc is R = 35 cm. Calc. the magnetic field B = (??I?)/(4?R) where ?? = 4? X 10?
Added by Shane D.
Close
Step 1
25 m Permeability of free space μ0 = 2 x 10^-7 Tm/A Using the formula for magnetic field due to a current-carrying wire: B = (μ0 * I1) / (2πd) B Show more…
Show all steps
Your feedback will help us improve your experience
Brjesh Kumar and 77 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Two wires are placed parallel to each other at a distance of 0.045 m. The first has an electric current of i1 = 2 A, and the second one of i2 = 4 A, both in the same direction. Predict the amount of magnetic force that a l = 1.8 m section of the second wire will feel. ANSWER:______
Sam S.
Two parallel current carrying wires are separated by a distance of 10 cm as shown in the figure below. I1 = 3.0 A I2 = 6.0 A a) Find the net magnetic field strength and direction at point A. Point A is located midway between the two wires (5 cm from either wire). μ0 = 4π x 10^-7 (T*m)/A b) Assume both wires are 2.0 m long. Find the magnitude and direction of the force (F12) on I1 from I2 c) Find the magnitude and direction of the force (F21) on I2 from I1 d) Will the wires be attracted to one another or repulsed by one another?
Adi S.
Figure $32-35 a$ shows the current $i$ that is produced in a wire of resistivity $1.62 \times 10^{-8} \Omega \cdot \mathrm{m}$. The magnitude of the current versus time $t$ is shown in Fig. $32-35 b$. The vertical axis scale is set by $i_{s}=10.0$ A, and the horizontal axis scale is set by $t_{s}=50.0 \mathrm{~ms}$. Point $P$ is at radial distance $9.00 \mathrm{~mm}$ from the wire's center. Determine the magnitude of the magnetic field $\vec{B}_{i}$ at point $P$ due to the actual current $i$ in the wire at (a) $t=20 \mathrm{~ms}$, (b) $t=$ $40 \mathrm{~ms}$, and (c) $t=60 \mathrm{~ms}$. Next, assume that the electric field driving the current is confined to the wire. Then determine the magnitude of the magnetic field $\vec{B}_{i d}$ at point $P$ due to the displacement current $i_{d}$ in the wire at (d) $t=20 \mathrm{~ms}$, (e) $t=$ $40 \mathrm{~ms}$, and (f) $t=60 \mathrm{~ms}$. At point $P$ at $t=20 \mathrm{~s}$, what is the direction (into or out of the page) of (g) $\vec{B}_{i}$ and (h) $\vec{B}_{i d}$ ?
