Describe the various methods available for reducing the induced voltages in the sheaths of HV cables.
Added by Purificaci-N P.
Step 1
These voltages can lead to safety hazards and operational issues. Show more…
Show all steps
Close
Your feedback will help us improve your experience
Andreas Papavassiliou and 81 other Calculus 1 / AB educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
A 85 kV, single-core, metal sheathed cable is to be graded by means of a metallic intersheath. (a) Find the diameter Δ of the intersheath and the voltage at which it must be maintained in order to obtain the minimum overall cable diameter D. The insulating material can be worked at 60 kV/cm. (b) Prove the formulas used, and compare the conductor and the outside diameter (d and D) with those of an ungraded cable of the same material under the same conditions.
Andreas P.

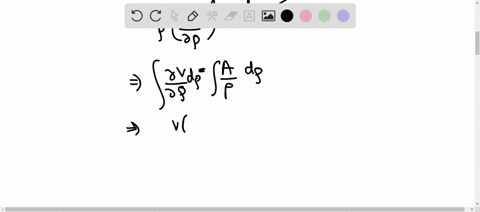

02) A coaxial cable has a voltage of 0.7 V on its inner conductor with a diameter of 4 cm and a voltage of -0.7 V on its outer conductor with a radius of 8 cm. Use Laplace's equation to find: 1) The general expression for the voltage at the dielectric. 2) The general expression for the electric field intensity at the dielectric. 3) The surface at which the voltage equals 0.1 V.
Animesh R.

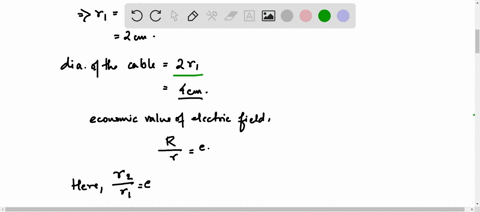

4- Applied voltage to the single core cable is equal to 250 kV and cross-sectional area of the cable is 12.56 cm². Calculate the diameter of the cable (r₁) and insulation thickness (r₂ - r₁). Calculate the Emax, Ecrit, and Einsulation.
Banhishikha S.
