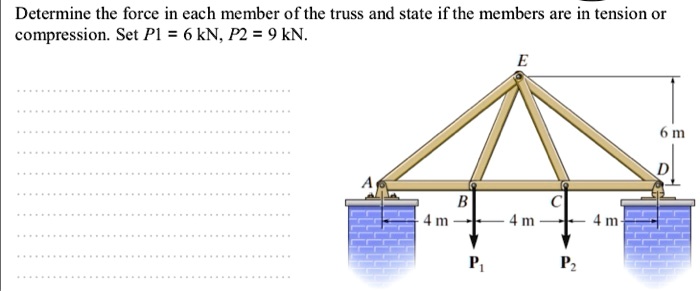

Determine the force in each member of the truss and state if the members are in tension or compression. Set P1 = 6 kN, P2 = 9 kN.
Added by Peter B.
Close
Step 1
First, we need to find the support reactions at the left support (A) and the right support (E). Let's call the vertical reaction at A as Ay and the vertical reaction at E as Ey. Show more…
Show all steps
