Determine the magnitude of the current through R1. ?1, ?2, R1, R2, R3 ?1=12.0 V, ?2=18.0 V, R1=15?, R2=32?, and R3=26?. 2.05 A 2.87 A 1.10 A 3.15 A
Added by Ashley B.
Close
Step 1
0 26i + 32i1 = 18.0 29i + 13i2 = 9.0 Show more…
Show all steps
Your feedback will help us improve your experience
Sri K and 85 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Find the magnitude of the current in the 1.0-Ě© resistor in the right figure.
Supratim P.
For the circuit below, determine the MAGNITUDE of the CURRENT passing through each resistor. V1 = 13 V, V2 = 17 V, V3 = 11 V, R1 = 3 Ω, R2 = 13 Ω, R3 = 14 Ω. I1 = I2 = I3 =
Sri K.

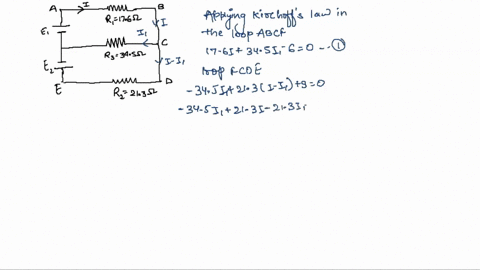

Part A Determine the magnitude of the current through resistor R1, shown in the figure below. The batteries have emfs of ε1 = 6.00 V and ε2 = 9.00 V and the resistors have values of R1 = 17.6 Ω, R2 = 21.3 Ω, and R3 = 34.5 Ω. Part B Determine the magnitude of the current through resistor R2. Part C Determine the magnitude of the current through resistor R3.
Shaiju T.
