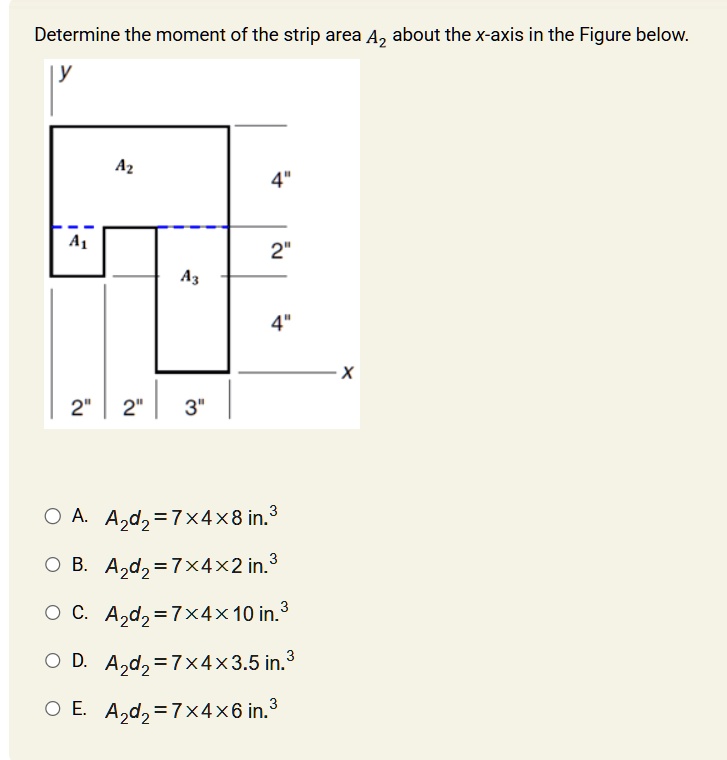

Determine the moment of the strip area $A_2$ about the x-axis in the Figure below. y $A_2$ 4" $A_1$ 2" $A_3$ 4" x 2" 2" 3" A. $A_2d_2 = 7 \times 4 \times 8$ in.$^3$ B. $A_2d_2 = 7 \times 4 \times 2$ in.$^3$ C. $A_2d_2 = 7 \times 4 \times 10$ in.$^3$ D. $A_2d_2 = 7 \times 4 \times 3.5$ in.$^3$ E. $A_2d_2 = 7 \times 4 \times 6$ in.$^3$
Added by Patricia B.
Close
Step 1
For area $A_2$, we need to find its dimensions and the y-coordinate of its centroid ($d_2$) with respect to the x-axis. Step 2: Determine the dimensions of area $A_2$. From the figure: The width of $A_2$ is the sum of the first two horizontal segments: $2'' + 2'' Show more…
