5. Determine the steady state voltage $v(t)$. (20%) 5 mF + 40 ? 10 cos (4$t$ + 60°) V 5 H $v(t)$
Added by Sean M.
Close
Step 1
The impedance of a capacitor is given by Zc = 1/(jωC), where j is the imaginary unit, ω is the angular frequency (2πf), and C is the capacitance. In this case, C = 5mF = 5x10^-3 F and f = 4 Hz. Therefore, Zc = 1/(j*2π*4*5x10^-3) = -j40. Show more…
Show all steps
Your feedback will help us improve your experience
Supreeta N and 80 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

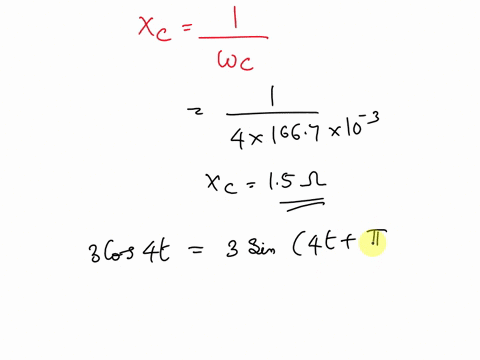

Find the steady state voltage v(t) using the node-voltage technique. 3cos(4t) V 2 Ω 8cos(4t) A 2 Ω 166.7 mF 2sin(4t) A
Supreeta N.
Find the steady-state current i(t).

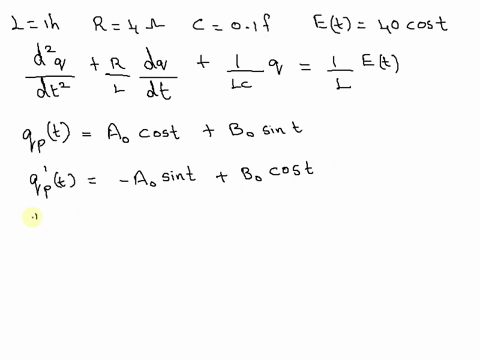

Find the steady-state charge qp(t) and the steady-state current ip(t) in an LRC-series circuit when L = 1 h, R = 4 Ω, C = 0.1 f, and E(t) = 40 cos(t) V.
