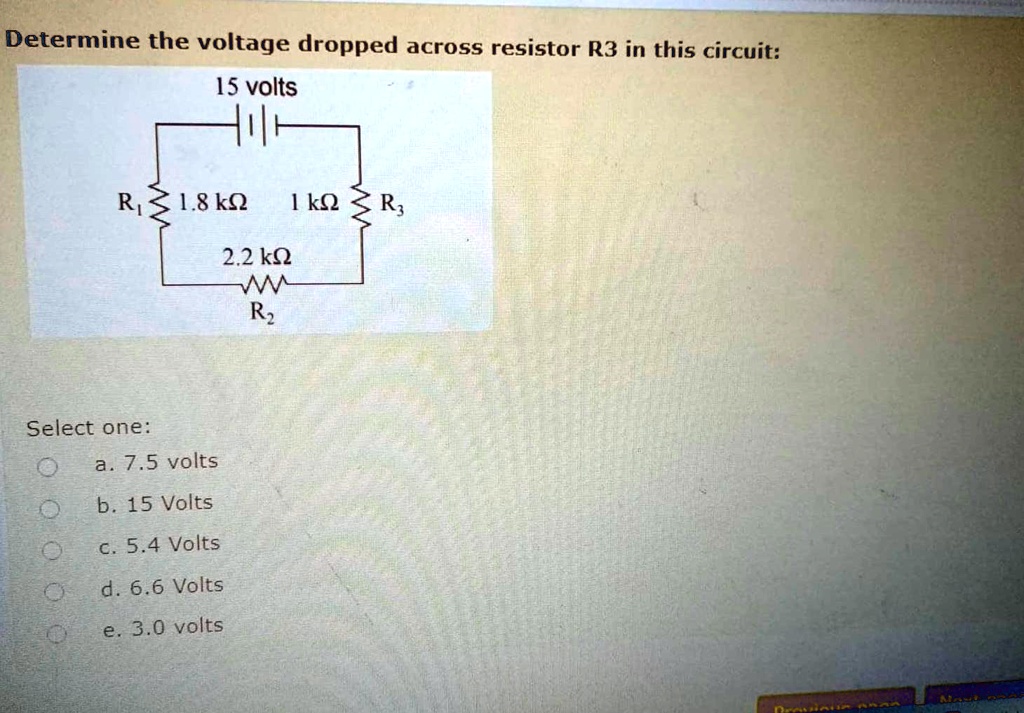

Determine the voltage dropped across resistor R3 in this circuit: 15 volts R1 1.8 k? 1 k? R3 2.2 k? R2 Select one: a. 7.5 volts b. 15 Volts c. 5.4 Volts d. 6.6 Volts e. 3.0 volts
Added by Wendy R.
Close
Step 1

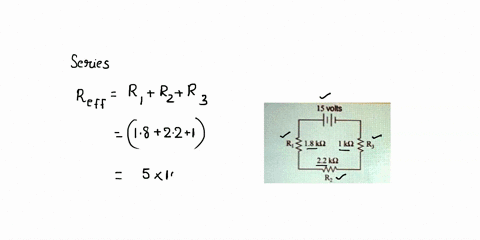

- Total voltage (V) = 15 volts - Resistor R1 = 1.8 kΩ - Resistor R2 = 2.2 kΩ - Resistor R3 = 1 kΩ Show more…
Show all steps
Your feedback will help us improve your experience
Madhur L and 50 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Determine the voltage dropped across resistor R3 in this circuit: Select one: a. 3.0 volts b. 6.6 Volts c. 15 Volts d. 5.4 Volts e. 7.5 volts
Adi S.
Find the amount of current $I$ (in amperes) produced if the electromotive force $E$ is 1.5 volts, the circuit resistance $R$ is 2.35 ohms, and the resistance $r$ within a battery is 0.15 ohms, using the formula $I=\frac{E}{R+r}$.
