Determine the normal stress in each segment of the steel rod shown in the figure. E = 200 GPa. Your answer: AB: 0 MPa BC: 500 MPa CD: 500 MPa AB: -667 MPa BC: -167 MPa CD: 500 MPa AB: -667 MPa BC: -500 MPa CD: 500 MPa AB: 333 MPa BC: -167 MPa CD: 500 MPa AB: -333 MPa BC: 167 MPa CD: -500 MPa
Added by Tracy P.
Close
Your feedback will help us improve your experience
Neelesh Sharma and 99 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
A steel rod (Es = 210 GPa, dr = 12 mm, ̑ = 12 x 10^-6 / °C) is held stress free between rigid walls by a clevis and pin (dp = 15 mm) assembly at each end as shown in the figure. If the allowable shear stress in the pin is 45 MPa and the allowable normal stress in the rod is 70 MPa, calculate the maximum permissible temperature drop ΔT.
Neelesh S.

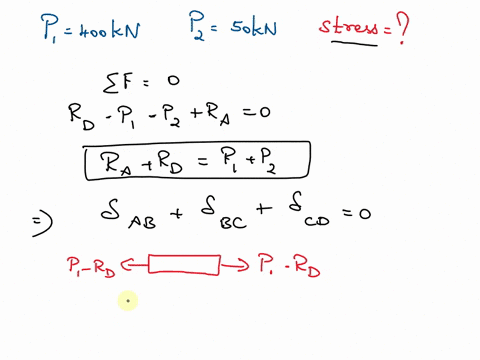

Calculate the stress in the steel from the given figure. Use P1 = 400 kN and P2 = 50 kN. Answer in MPa. Aluminum: A = 900 mm², E = 70 GPa Steel: A = 2000 mm², E = 200 GPa Bronze: A = 1200 mm², E = 83 GPa Lengths: 500 mm, 250 mm, 350 mm
Madhur L.
