Draw the equivalent circuit, torque - speed, torque - current characteristics of shunt dc motor, Write the equation of the rated speed
Added by Alec P.
Close
Step 1
Step 1: Equivalent circuit of a shunt DC motor The equivalent circuit of a shunt DC motor consists of a voltage source (V), armature resistance (Ra), armature reactance (Xa), field resistance (Rf), and the back EMF (Eb) generated by the motor. Show more…
Show all steps
Your feedback will help us improve your experience
Madhur L and 71 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

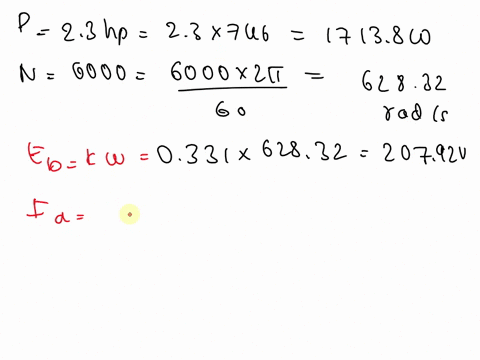

Determine the torque vs. speed and torque vs. current characteristics for a separately excited DC motor with the following parameters: 2.3 hp, 220V, 6000 rpm, R = 1.39, L = 0.00182 H, K = 0.331 volt/rad/sec. The machine has rated field excitation, and its armature is fed a constant voltage of 220V DC.
Madhur L.
Determine the torque vs. speed and torque vs. current characteristics for a separately excited DC motor with the following parameters: 2.3 hp, 220 V, 6000 rpm, Ra = 1.39 ̦, La = 0.00182 H, Kb = 0.331 volt/rad/sec. The machine has rated field excitation, and its armature is fed a constant voltage of 220 V DC.
Adi S.
1. The torque-speed characteristics of a DC motor have been determined, as shown in Figure 1 below. Note that u is the voltage applied to the motor armature, τm and ωm are, respectively, the output torque and angular velocity of the motor shaft. From this plot, • Obtain the motor constant, torque constant, and armature resistance of the motor. • When the motor is rotating at 100 radians per second, what is the back emf voltage induced at the armature? • When the motor is producing 2x10^-3 Nm of torque, how much power is dissipated as heat at the motor windings? Figure 1: Torque-speed characteristics of a DC motor
