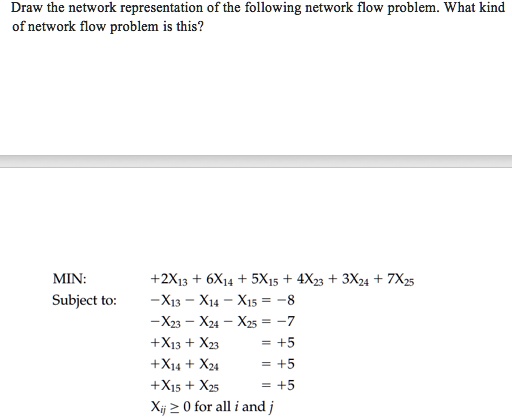

Draw the network representation of the following network flow problem. What kind of network flow problem is this? MIN: +2X13 + 6X14 + 5X15 + 4X23 + 3X24 + 7X25 Subject to: -X13 - X14 - X15 = -8 -X23 - X24 - X25 = -7 +X13 + X23 = +5 +X14 + X24 = +5 +X15 + X25 = +5 Xij ? 0 for all i and j

          Draw the network representation of the following network flow problem. What kind of network flow problem is this?
MIN:
+2X13 + 6X14 + 5X15 + 4X23 + 3X24 + 7X25
Subject to:
-X13 - X14 - X15 = -8
-X23 - X24 - X25 = -7
+X13 + X23 = +5
+X14 + X24 = +5
+X15 + X25 = +5
Xij ? 0 for all i and j

Draw the network representation of the following network flow problem. What kind of network flow problem is this?
MIN:
+2X13 + 6X14 + 5X15 + 4X23 + 3X24 + 7X25
Subject to:
-X13 - X14 - X15 = -8
-X23 - X24 - X25 = -7
+X13 + X23 = +5
+X14 + X24 = +5
+X15 + X25 = +5
Xij ? 0 for all i and j

Added by Claudia C.

Calculus: Early Transcendentals

James Stewart 8th Edition

Instant Answer

Solved by Expert Adi S

06/22/2023

Step 1

First, let's rewrite the given information in a more readable format: Minimize: $$ 2X_{13} + 6X_{14} + 5X_{15} + 4X_{23} + 3X_{24} + 7X_{25} $$ Subject to: $$ X_{13} + X_{14} + X_{15} = 8 \\ X_{23} - X_{13} = -7 \\ X_{24} + X_{23} = 5 \\ X_{25} - X_{15} - X_{14} Show more…
