E. Complete the data in the given table below for NPN-BJT. Function (or Use) Amplifier Operating Region Cut-off [2 Marks] BE Junction CB Junction Reverse Reverse
Added by Melissa G.
Close
Step 1
In this region, the transistor is off, and no current flows through it. This is because the base-emitter junction is reverse biased, and the base-collector junction is also reverse biased. Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 99 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
For the non-inverting operational amplifier circuit (a) and block diagram (b) shown, assume that the op-amp is ideal. Use Mason's rule to obtain the closed-loop system transfer function Vo(s)/Vi(s).
Adi S.
question in picture
Hemraj K.

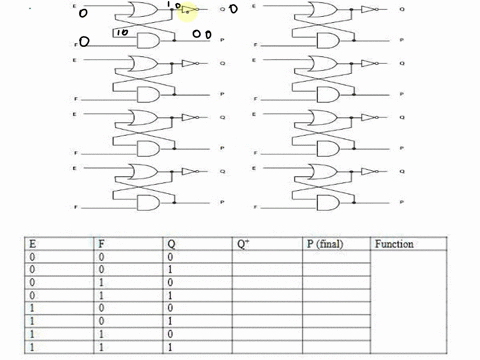

Consider this made-up latch, the "EF latch." Fill out the table below. Show your work above on the circuits.
