80. Determine the total voltage that is applied to R3 for the Circuit Shown on (Figure 5-27) (a) 90 volts (c) 110 volts (b) 100 Volts (d) 120 volts E? = 120 V S? FIGURE 5-27 3. Given the circuit in Figure 5-28, find the R? = 47 ? R? = 10 ? R? = 180 ?
Added by Ivan M.
Close
Step 1
Step 1: Identify the circuit connections — R1 = 47 Ω, R2 = 10 Ω, and R3 = 180 Ω are connected between the same top and bottom rails (they are in parallel), and the source E = 120 V connects the top rail to the bottom rail when the switch S is closed. Show more…
Show all steps
Your feedback will help us improve your experience
David Morabito and 78 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Both ammeters in the circuit shown in Fig. 9 indicate 1.70 A. If the source supplies 300 W to the circuit, find R1 and R2. Find I and Vab in the circuit of Fig. 10.
Adi S.
A multiloop circuit is shown in the figure. Some circuit quantities are not labeled. Find the value of I2 as shown in the figure. Your answer: A) +0.3A B) -0.1A C) +0.5A D) +0.1A E) -0.3A
Madhur L.

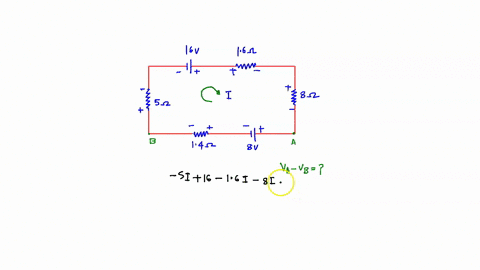

For the circuit shown in the figure below, calculate: a) The current through the circuit (magnitude and direction) b) The terminal voltage of the non-ideal 8.0-V battery.
