Problem 4 For the circuit shown in the figure below calculate: a) The current through the circuit (magnitude and direction) ?? = 16.0 V r? = 1.6 ? a b R? = 5.0 ? R? = 8.0 ? c r? = 1.4 ? ?? = 8.0 V b) The terminal voltage of the non-ideal 8.0-V battery.
Added by Jake W.
Close
Step 1
003i - 144i - 8i = 0 -16 - 15.003i = 0 i = -16 / -15.003 i ≈ 1.0667 A Show more…
Show all steps
Your feedback will help us improve your experience
Sahil Kumar and 61 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
For the circuit shown in the figure below, calculate: a) The current through the circuit (magnitude and direction) b) The terminal voltage of the non-ideal 8.0-V battery.
Sahil K.

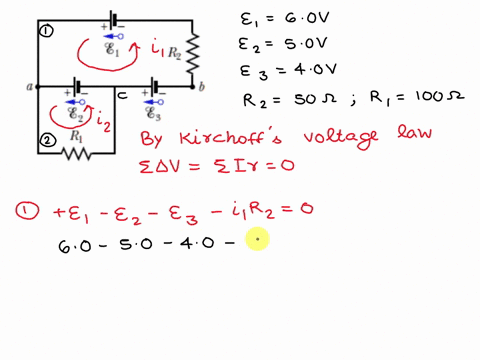

In the figure, R1 = 100 Ω, R2 = 50 Ω, and the ideal batteries have emfs E1 = 6.0 V, E2 = 5.0 V, and E3 = 4.0 V. Find the current in resistor 1, the current in resistor 2, and the potential difference between points a and b.
