EXAMPLE 6 Find the scalar projection and vector projection of b = (4, 2, 1) onto a = (-2, 4, 3). SOLUTION Since $|a| = \sqrt{(-2)^2 + 4^2 + 3^2} = \sqrt{29}$, the scalar projection of b onto a is $comp_a b = \frac{a \cdot b}{|a|} = \frac{(-2)(4) + 4(2) + 3(1)}{\sqrt{29}}$ $= \frac{3\sqrt{29}}{29}$ The vector projection is this scalar projection times the unit vector in the direction of a, below. $proj_a b = \frac{3\sqrt{29}}{29} \cdot \frac{a}{|a|} = \frac{3\sqrt{29}}{29} \cdot a$

          EXAMPLE 6 Find the scalar projection and vector projection of b = (4, 2, 1) onto a = (-2, 4, 3).
SOLUTION Since $|a| = \sqrt{(-2)^2 + 4^2 + 3^2} = \sqrt{29}$, the scalar projection of b onto a is
$comp_a b = \frac{a \cdot b}{|a|} = \frac{(-2)(4) + 4(2) + 3(1)}{\sqrt{29}}$
$= \frac{3\sqrt{29}}{29}$
The vector projection is this scalar projection times the unit vector in the direction of a, below.
$proj_a b = \frac{3\sqrt{29}}{29} \cdot \frac{a}{|a|} = \frac{3\sqrt{29}}{29} \cdot a$

Show more…
EXAMPLE 6 Find the scalar projection and vector projection of b = (4, 2, 1) onto a = (-2, 4, 3).
SOLUTION Since |a| = √((-2)^2 + 4^2 + 3^2) = √(29), the scalar projection of b onto a is
compa b = (a · b)/(|a|) = ((-2)(4) + 4(2) + 3(1))/(√(29))
= (3√(29))/(29)
The vector projection is this scalar projection times the unit vector in the direction of a, below.
proja b = (3√(29))/(29)·(a)/(|a|) = (3√(29))/(29)· a

Added by Daniel V.

Close

Calculus: Early Transcendentals
Calculus: Early Transcendentals
James Stewart 8th Edition
AceChat toggle button
Close icon
Ace pointing down

Please give Ace some feedback

Your feedback will help us improve your experience

Thumb up icon Thumb down icon
Thanks for your feedback!
Profile picture
EXAMPLE 6: Find the scalar projection and vector projection of b = 4,2,1 onto a = -2,4,3. SOLUTION: Since |a| = √((-2)^2 + 4^2 + 3^2) = √(4 + 16 + 9) = √29, the scalar projection of b onto a is: proj.b = (b · a) / |a| = (4*(-2) + 2*4 + 1*3) / √29 = (-8 + 8 + 3) / √29 = 3 / √29. The vector projection is this scalar projection times the unit vector in the direction of a, below: proj.b = (3 / √29) * (a / |a|) = (3 / √29) * (-2/√29, 4/√29, 3/√29) = (-6/29, 12/29, 9/29).
Close icon
Play audio
Feedback
Powered by NumerAI
Danielle Fairburn Jennifer Stoner
Ivan Kochetkov verified

Madhur L and 89 other subject Calculus 1 / AB educators are ready to help you.

Ask a new question

*

Labs

-

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

*

Key Concepts

-
Key Concept
Premium Feature
Explore the core concept behind this problem.
Play button
Key Concept
Premium Feature
Explore the core concept behind this problem.
Your browser does not support the video tag.

*

Recommended Videos

-
example-6-find-the-scalar-projection-and-vector-projection-of-b-3-1-1-onto-a-423_-solution-since-ial-v-42-22-37-v29-the-scalar-projection-of-b-onto-a-is-4x3-21-301-compab-v-29-29-the-vector-93646

EXAMPLE 6 Find the scalar projection and vector projection of b = (3, 1, 1) onto a = (-4, 2, 3). SOLUTION Since |a| = √((-4)² + 2² + 3²) = √29, the scalar projection of b onto a is compₐb = (a · b) / |a| = ((-4)(3) + 2(1) + 3(1)) / √29 = -(7√29) / 29 The vector projection is this scalar projection times the unit vector in the direction of a, below. projₐb

Madhur L.

example-6-find-the-scalar-projection-and-vector-projection-of-b-1-4-onto-2-43-solution-since-ial-v-22-_-42-32-29-the-scalar-projection-of-onto-a-2x1-44-31-v29-compab-the-vector-projection-is-88755

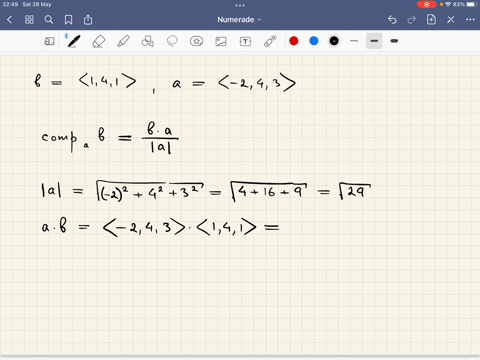

EXAMPLE 6 Find the scalar projection and vector projection of b = (1, 4, 1) onto a = (-2, 4, 3). SOLUTION Since |a| = ∘((-2)^2 + 4^2 + 3^2) = ∘29, the scalar projection of b onto a is comp_a b = (a ∙ b) / |a| = ((-2)(1) + 4(4) + 3(1)) / ∘29 = 17 / ∘29 The vector projection is this scalar projection times the unit vector in the direction of a, below. proj_a b

Zhumagali S.

point-let-a-330-and-b-10-1-vector-in-the-direction-of-a-be-vectors-find-the-scalars-and-vectors-defined-below-note-that-these-formulas-only-depend-on-the-unit-the-component-of-b-along-a-comp-49199

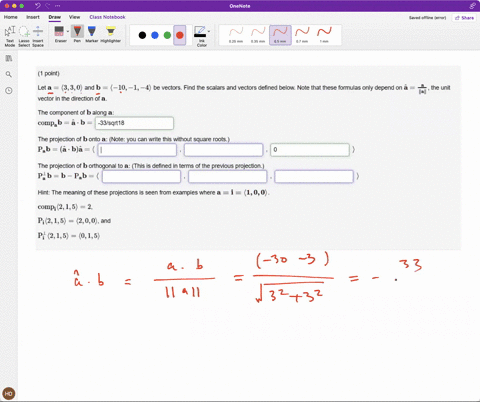

Let a = ✈3, 3, 0✉ and b = ✈-10, -1, -4✉ be vectors. Find the scalars and vectors defined below. Note that these formulas only depend on â = a / ||a||, the unit vector in the direction of a. The component of b along a: compa b = â ⋅ b = The projection of b onto a: (Note: you can write this without square roots.) Pa b = (â ⋅ b)â = ✈ , , 0 ✉ The projection of b orthogonal to a: (This is defined in terms of the previous projection.) Pa⊥ b = b - Pa b = ✈ , , ✉ Hint: The meaning of these projections is seen from examples where a = i = ✈1, 0, 0✉. compi ✈2, 1, 5✉ = 2, Pi ✈2, 1, 5✉ = ✈2, 0, 0✉, and Pi⊥ ✈2, 1, 5✉ = ✈0, 1, 5✉
