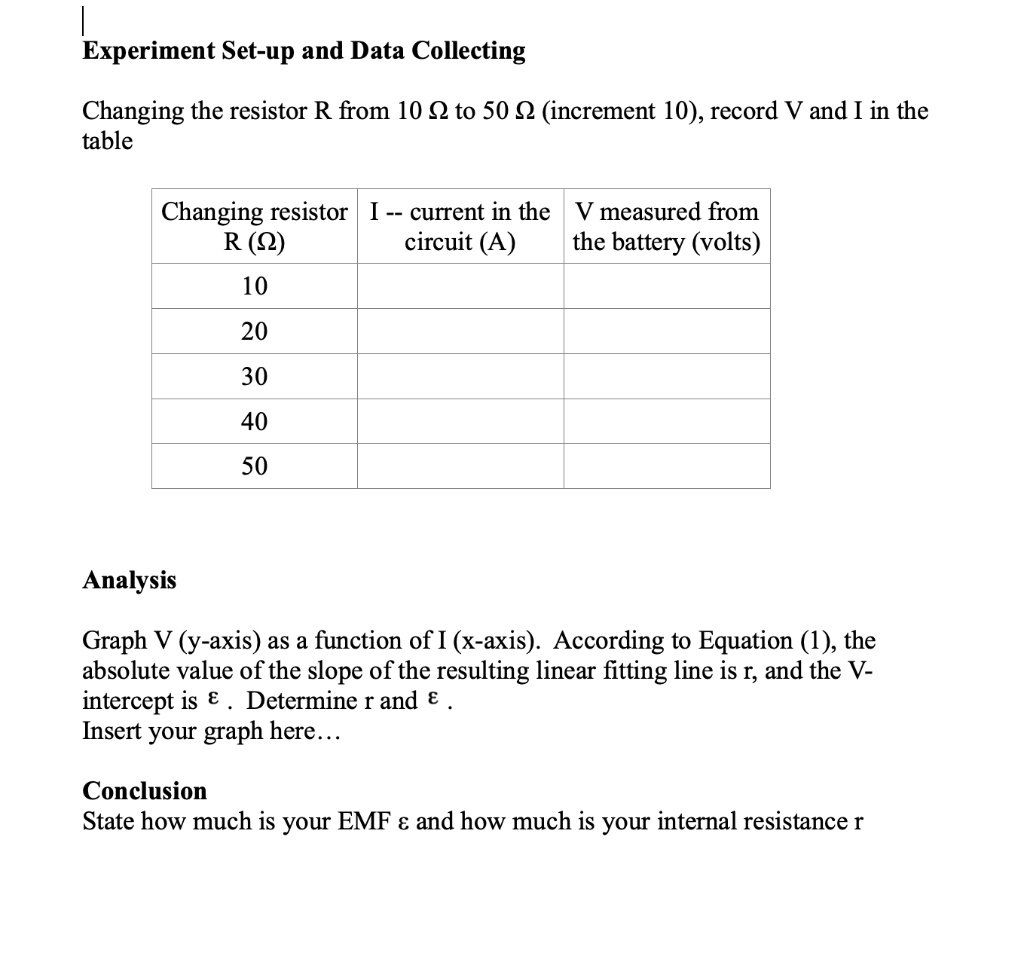

Experiment Set-up and Data Collecting
Changing the resistor R from 10 Q to 50 Q (increment 10), record V and I in the table
Changing resistor [ current in the V measured from R (Q) circuit (A) the battery (volts) 10
20
30
40
50
Analysis
Graph V (y-axis) as a function of I (x-axis). According to Equation (1), the absolute value of the slope of the resulting linear fitting line is I, and the V- intercept is € Determine r and Insert your graph here _
Conclusion State how much is your EMF € and how much is your internal resistance r
