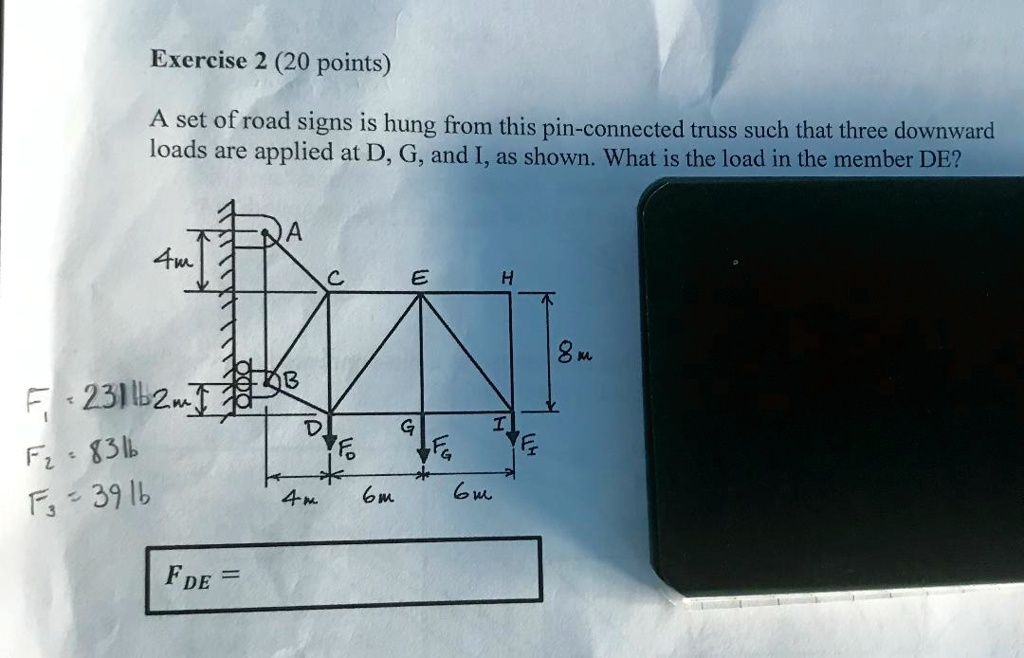

Exercise 2 (20 points) A set of road signs is hung from this pin-connected truss such that three downward loads are applied at D, G, and I, as shown. What is the load in the member DE? $F_1 = 231 lb$ $F_2 = 83 lb$ $F_3 = 39 lb$ $F_{DE} = $

          Exercise 2 (20 points)
A set of road signs is hung from this pin-connected truss such that three downward
loads are applied at D, G, and I, as shown. What is the load in the member DE?
$F_1 = 231 lb$
$F_2 = 83 lb$
$F_3 = 39 lb$
$F_{DE} = $

Exercise 2 (20 points)
A set of road signs is hung from this pin-connected truss such that three downward
loads are applied at D, G, and I, as shown. What is the load in the member DE?
F1 = 231 lb
F2 = 83 lb
F3 = 39 lb
FDE =

Added by Vanessa W.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Ethan Deweese

Step 1

First, let's identify the forces acting on member DE. We have the downward load at D, which is FD = 39 lb. Show more…
