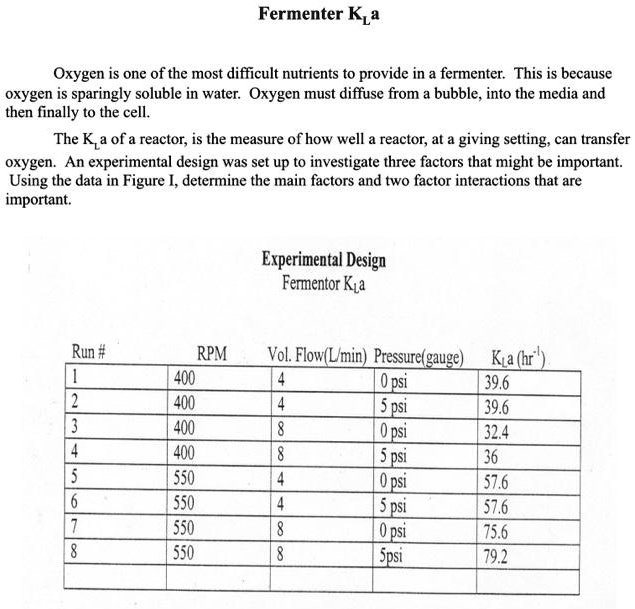

Fermenter KLa Oxygen is one of the most difficult nutrients to provide in a fermenter. This is because oxygen is sparingly soluble in water. Oxygen must diffuse from a bubble, into the media and then finally to the cell. The KLa of a reactor, is the measure of how well a reactor, at a giving setting, can transfer oxygen. An experimental design was set up to investigate three factors that might be important. Using the data in Figure I, determine the main factors and two factor interactions that are important. Experimental Design Fermentor KLa Run # RPM Vol. Flow(L/min) Pressure(gauge) KLa (hr-1) 1 400 4 0 psi 39.6 2 400 4 5 psi 39.6 3 400 8 0 psi 32.4 4 400 8 5 psi 36 5 550 4 0 psi 57.6 6 550 4 5 psi 57.6 7 550 8 0 psi 75.6 8 550 8 5psi 79.2
Added by Claudia M.
Close
Step 1
First, we need to understand what the three factors are in this experiment. From the data provided, it seems the three factors are: RPM (Revolutions Per Minute), Volume Flow (L/min), and Pressure (gauge). Show more…
Show all steps
Your feedback will help us improve your experience
Josee Pacheco and 95 other Biology educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

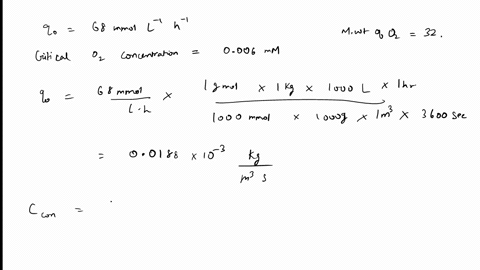

A genetically engineered strain of yeast is cultured in a bioreactor at 30°C for the production of heterologous protein. The oxygen requirement is 68 mmol/L.h; the critical oxygen concentration is 0.006 mM. The solubility of oxygen in the fermentation broth is estimated to be 22% lower than in water due to solute effects. What is the minimum mass transfer coefficient necessary to sustain this culture with dissolved oxygen levels above critical if the reactor oxygen pressure is 3.84x10-2 kg/m3, and the solubility of oxygen in water at 30°C under 1 atm air pressure is 8.05x10-3 kg/m3?
Sri K.
A stirred, baffled fermenter is used to culture Streptomyces cinnamonensis for production of monensin. The tank diameter and liquid height are both 1.1 m. The broth density is 1000 kg m23 and the viscosity is 15 cP. The fermenter is mixed using a Rushton turbine of diameter one-half the tank diameter. The air flow rate is 0.66 vvm (volume of gas per volume of liquid per minute) (a) What stirrer speed is required for complete gas dispersion? (b) What are the power requirements for complete gas dispersion? Assume the power draw with gassing is 50% of that without gassing.
Adi S.

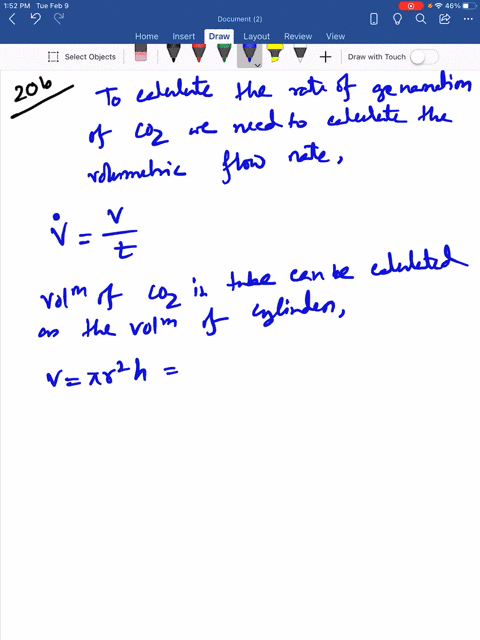

A device has been designed to measure the flow rate of carbon dioxide evolved from a fermentation reactor. The reactor is sealed except for a tube that allows the generated $\mathrm{CO}_{2}$ to bubble through a soap solution and into a vertical glass tube with an internal diameter of $1.2 \mathrm{cm} .$ On leaving the soap solution, the bubbles form thin soap films stretched across the tube and pushed through the tube by the $\mathrm{CO}_{2}$. Ambient temperature and pressure are $27^{\circ} \mathrm{C}$ and $755 \mathrm{mm}$ Hg. It takes the films $7.4 \mathrm{s}$ to traverse the $1.2 \mathrm{m}$ between two calibration marks on the tube. (a) Sketch the apparatus. (b) What is the rate of generation of $\mathrm{CO}_{2}$ in mol/min? (c) A more refined analysis of the system takes into account that the gas leaving the fermentation reactor contains water with a partial pressure of $26.7 \mathrm{mm}$ Hg. Calculate the percentage error in Part (b) using this new information.
