Theoretical Minimum AISC Recommend $L_e = L$ $L_e = 0.707L$ $L_e = 0.5L$ $L_e = 1.2L$ $L_e = 2L$ $L_e = L$ $L_e = 0.80L$ $L_e = 0.65L$ $L_e = 1.2L$ $L_e = 2L$ Equivalent column lengths for various end conditions. Source: From Manual of Steel Construction, 7th ed., American Institute of Steel Construction, Inc., New York, 1970, pp. 5-138. FIGURE 5.27
Added by Cassidy S.
Close
Step 1
The figure mentioned, Figure 5.27, likely shows a graph or table displaying the minimum theoretical equivalent column lengths for various end conditions. These lengths are determined according to the 7th edition of the American Institute of Steel Construction Show more…
Show all steps
Your feedback will help us improve your experience
Gopal Sharma and 65 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

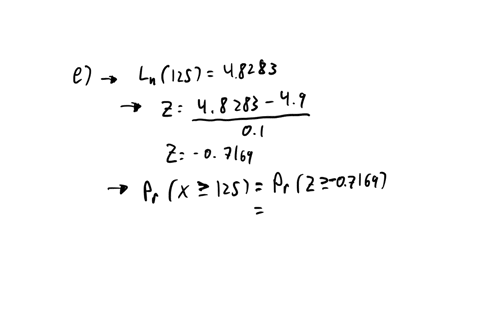

A theoretical justification based on a certain material failure mechanism underlies the assumption that ductile strength X of a material has a lognormal distribution. Suppose the parameters are μ = 4.9 and σ = 0.10. (a) Compute E(X) and V(X). (Round your answers to three decimal places.) E(X) = 134.963 V(X) = 183.064 (b) Compute P(X > 125). (Round your answer to four decimal places.) .7633 (c) Compute P(110 ≤ X ≤ 125). (Round your answer to four decimal places.) .2137 (d) What is the value of median ductile strength? (Round your answer to three decimal places.) 134.29 (e) If ten different samples of an alloy steel of this type were subjected to a strength test, how many would you expect to have strength of at least 125? (Round your answer to three decimal places.) 4.714 samples (f) If the smallest 5% of strength values were unacceptable, what would the minimum acceptable strength be? (Round your answer to three decimal places.) You may need to use the appropriate table in the Appendix of Tables to answer this question.
Lucas F.
(a) Using Figure 8.31, compute the rupture lifetime for an $S-590$ alloy that is exposed to a tensile stress of $400 \mathrm{MPa}$ at $815^{\circ} \mathrm{C}$. (b) Compare this value to the one determined from the Larson-Miller plot of Figure $8.33$, which is for this same S-590 alloy.
Useful equation: σ = F/A (= P/A) 1. Find the maximum absolute allowable value of P for the column. The cross-sectional areas and allowable stresses of each segment are indicated in the figure below. Neglect the weight of the column. (20 pts) Top load: 2P Steel: A = 500 mm^2, σ_allow = 120 MPa Timber: 4P, A = 2000 mm^2, σ_allow = 12 MPa Concrete: A = 8000 mm^2, σ_allow = 16 MPa
Adi S.
