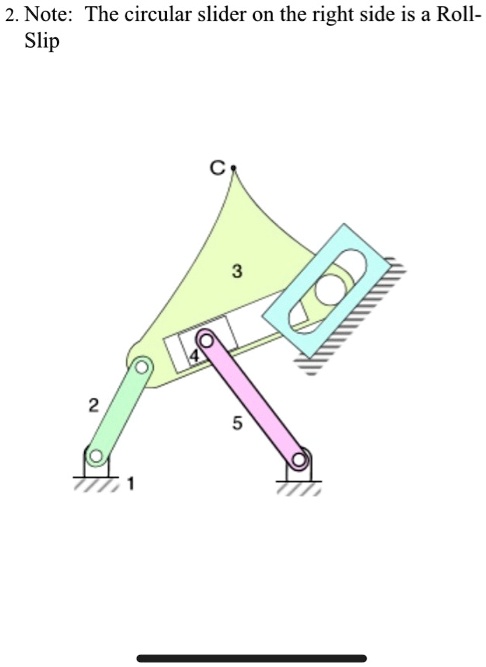

Note: The circular slider on the right side is a Roll-Slip
Added by Katie A.
Close
Step 1
First, we need to identify the number of links in the mechanism. From the given diagram, we can see that there are 4 links: the ground link, the crank (link 1), the connecting rod (link 2), and the slider (link 3). Show more…
Show all steps
Your feedback will help us improve your experience
Sri K and 66 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
The homogeneous sphere of Prob. $6 / 191$ is placed on the incline with a clockwise angular velocity $\omega_{0}$ but no linear velocity of its center $\left(v_{0}=0\right) .$ Determine the time duration $t$ of the period of slipping. In addition, state the velocity $v$ of the mass center $G$ and angular velocity $\omega$ at the end of the period of slipping.
Sri K.

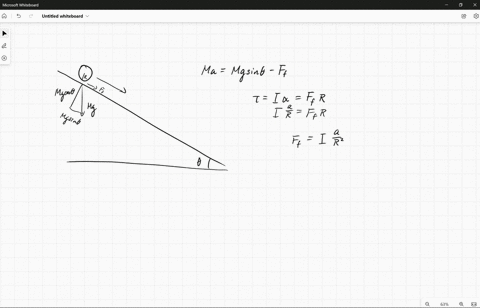

Determine the acceleration of the center of mass of a uniform solid disk rolling down an incline making an angle theta with the horizontal. (Use any variable or symbol stated above along with the following as necessary: g for the acceleration of gravity.) adisk = Compare the acceleration found in part with that of a uniform hoop. (Use any variable or symbol stated above along with the following as necessary: g for the acceleration of gravity.) a=hoop What is the minimum coefficient of friction required to maintain pure rolling motion for the disk?
Timothy J.
