For an adiabatic steam nozzle, following data is given The velocity at the exit section (in m/s) is ? 200 ? 300 ? 400 ? 500 ? 600 P? = 5MPa T? = 600°C V? = 0 m/s P? = 100kPa T? = 500°C
Added by Raquel R.
Close
Step 1
We can use the steam tables to find the specific enthalpy values corresponding to the given pressure and temperature values. At the inlet section: P = 5 MPa, T = 600°C Using the steam tables, we find that the specific enthalpy at this condition is approximately Show more…
Show all steps
Your feedback will help us improve your experience
Ravindra Yadav and 71 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Madhur L.

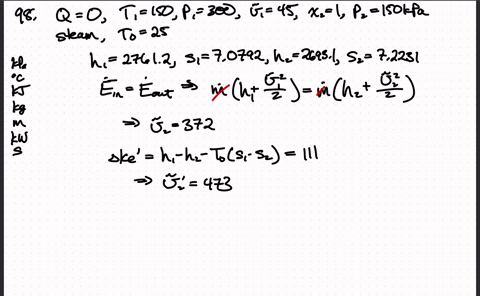

An adiabatic steam nozzle has steam entering at $300 \mathrm{kPa}, 150^{\circ} \mathrm{C},$ and $45 \mathrm{m} / \mathrm{s},$ and leaving as a saturated vapor at $150 \mathrm{kPa}$. Calculate the actual and maximum outlet velocity. Take $T_{0}=25^{\circ} \mathrm{C}$.

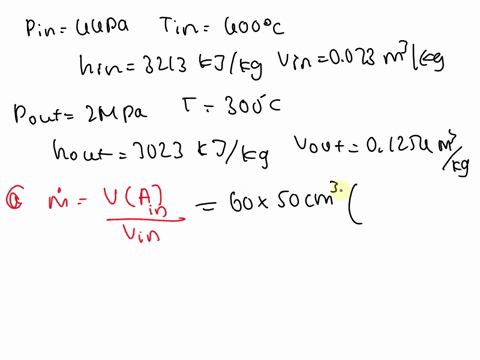

Steam at $4 \mathrm{MPa}$ and $400^{\circ} \mathrm{C}$ enters a nozzle steadily with a velocity of $60 \mathrm{m} / \mathrm{s}$, and it leaves at $2 \mathrm{MPa}$ and $300^{\circ} \mathrm{C}$ The inlet area of the nozzle is $50 \mathrm{cm}^{2}$, and heat is being lost at a rate of $75 \mathrm{kJ} / \mathrm{s}$. Determine $(a)$ the mass flow rate of the steam, ( $b$ ) the exit velocity of the steam, and ( $c$ ) the exit area of the nozzle.
