normal stress in each segment due to the applied load

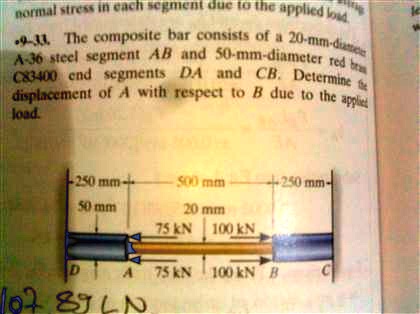

9-33. The composite bar consists of a 20-mm-diameter
A-36 steel segment AB and 50-mm-diameter red bram
C83400 end segments DA and CB. Determine the
displacement of A with respect to B due to the applied
load.
250 mm
500 mm
250 mm
50 mm
20 mm
75 kN 100 kN
A 75 kN 100 kN B
C
D
