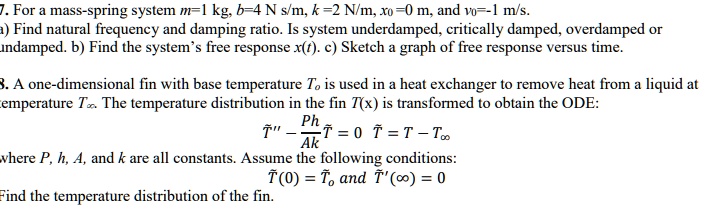

7. For a mass-spring system m=1 kg, b=4 N s/m, k=2 N/m, x?=0 m, and v?=-1 m/s. a) Find natural frequency and damping ratio. Is system underdamped, critically damped, overdamped or undamped. b) Find the system's free response x(t). c) Sketch a graph of free response versus time. 8. A one-dimensional fin with base temperature T? is used in a heat exchanger to remove heat from a liquid at temperature T?. The temperature distribution in the fin T(x) is transformed to obtain the ODE: ?'' - (Ph/Ak)? = 0 ? = T - T? where P, h, A, and k are all constants. Assume the following conditions: ?(0) = ?? and ?'(?) = 0 Find the temperature distribution of the fin.

          7. For a mass-spring system m=1 kg, b=4 N s/m, k=2 N/m, x?=0 m, and v?=-1 m/s. a) Find natural frequency and damping ratio. Is system underdamped, critically damped, overdamped or undamped. b) Find the system's free response x(t). c) Sketch a graph of free response versus time.

8. A one-dimensional fin with base temperature T? is used in a heat exchanger to remove heat from a liquid at temperature T?. The temperature distribution in the fin T(x) is transformed to obtain the ODE:
?'' - (Ph/Ak)? = 0  ? = T - T?
where P, h, A, and k are all constants. Assume the following conditions:
?(0) = ?? and ?'(?) = 0
Find the temperature distribution of the fin.

Show more…

7. For a mass-spring system m=1 kg, b=4 N s/m, k=2 N/m, x?=0 m, and v?=-1 m/s. a) Find natural frequency and damping ratio. Is system underdamped, critically damped, overdamped or undamped. b) Find the system's free response x(t). c) Sketch a graph of free response versus time.

8. A one-dimensional fin with base temperature T? is used in a heat exchanger to remove heat from a liquid at temperature T?. The temperature distribution in the fin T(x) is transformed to obtain the ODE:
?” - (Ph/Ak)? = 0 ? = T - T?
where P, h, A, and k are all constants. Assume the following conditions:
?(0) = ?? and ?'(?) = 0
Find the temperature distribution of the fin.

Added by Courtney C.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Adi S

07/02/2023

Step 1

The equation of motion for a damped mass-spring system is given by: $m\ddot{x} + b\dot{x} + kx = 0$ where $m$ is the mass, $b$ is the damping coefficient, $k$ is the spring constant, and $x$ is the displacement. Plugging in the given values, we get: $| \ddot{x} Show more…

Show all steps

lock

Thanks for your feedback!

For a mass-spring system, m = 1 kg, b = 4 N s/m, k = 2 N/m, x0 = 0 m, and v0 = -1 m/s. a) Find natural frequency and damping ratio. Is system underdamped, critically damped, overdamped or undamped. b) Find the system's free response x(t). c) Sketch a graph of free response versus time. A one-dimensional fin with base temperature To is used in a heat exchanger to remove heat from a liquid at temperature T∞. The temperature distribution in the fin T(x) is transformed to obtain the ODE: Ť'' - (Ph/Ak)Ť = 0 Ť = T - T∞ where P, h, A, and k are all constants. Assume the following conditions: Ť(0) = Ťo and Ť'(∞) = 0 Find the temperature distribution of the fin.
