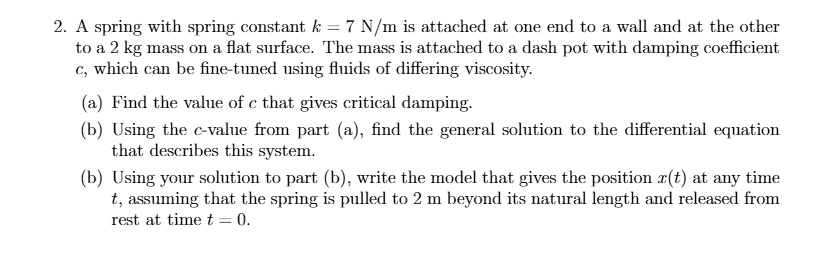

2. A spring with spring constant $k = 7 ext{ N/m}$ is attached at one end to a wall and at the other to a 2 kg mass on a flat surface. The mass is attached to a dash pot with damping coefficient c, which can be fine-tuned using fluids of differing viscosity. (a) Find the value of c that gives critical damping. (b) Using the c-value from part (a), find the general solution to the differential equation that describes this system. (b) Using your solution to part (b), write the model that gives the position $x(t)$ at any time t, assuming that the spring is pulled to 2 m beyond its natural length and released from rest at time $t = 0$.
Added by Chad H.
Close
Step 1
The equation for critical damping is: C_critical = 2 * sqrt(m * k) where m is the mass (2 kg) and k is the spring constant (7 N/m). Plugging in the values, we get: C_critical = 2 * sqrt(2 * 7) = 2 * sqrt(14) Now, we need to find the general solution to the Show more…
Show all steps
