Question

For the circuit depicted in Fig. P1.8-1, find the differential equations relating outputs y_1(t) and y_2(t) to the input x(t). 3 ? x(t) y_1(t) 1 H y_2(t) Figure P1.8-1 Repeat Prob. 1.8-1 for the circuit in Fig. P1.8-2. y_1(t) x(t) 1/2 ? 1 F 1/2 H y_2(t) Figure P1.8-2

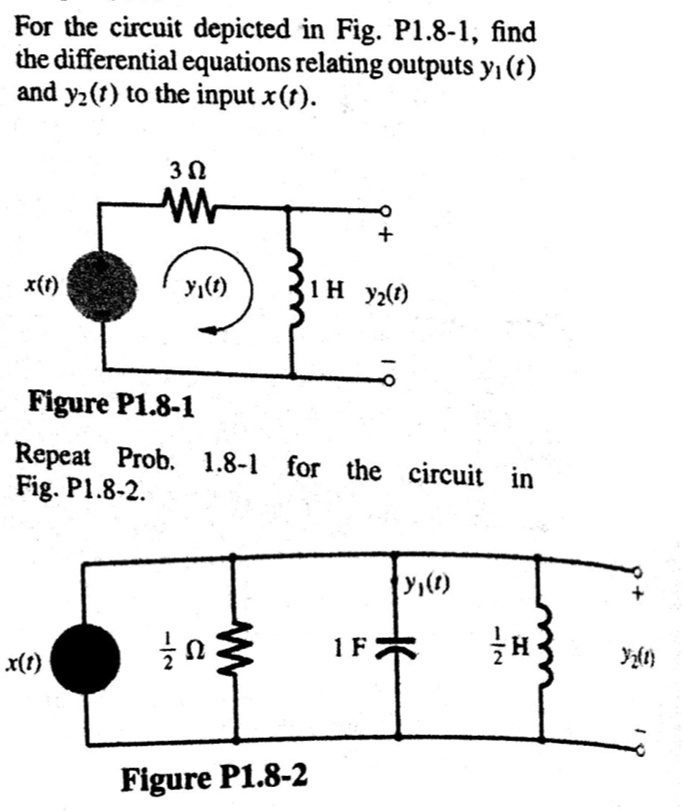

          For the circuit depicted in Fig. P1.8-1, find the differential equations relating outputs y_1(t) and y_2(t) to the input x(t).

3 ?
x(t)
y_1(t)
1 H y_2(t)

Figure P1.8-1

Repeat Prob. 1.8-1 for the circuit in Fig. P1.8-2.

y_1(t)
x(t)
1/2 ?
1 F
1/2 H
y_2(t)

Figure P1.8-2

For the circuit depicted in Fig. P1.8-1, find the differential equations relating outputs y1(t) and y2(t) to the input x(t).

3 ?
x(t)
y1(t)
1 H y2(t)

Figure P1.8-1

Repeat Prob. 1.8-1 for the circuit in Fig. P1.8-2.

y1(t)
x(t)
1/2 ?
1 F
1/2 H
y2(t)

Figure P1.8-2
