For the circuit shown in Fig. 3.34 the total capacitance is 24 pF Calculate (a) The value of the unmarked capacitor C unit pF 15pF D 60 pF C A B C E 75 pF 150 V Fig. 3.34
Added by Jaime H.
Close
Step 1
The 15 pF and 75 pF capacitors are in series. Show more…
Show all steps
Your feedback will help us improve your experience
Eduard Sanchez and 71 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

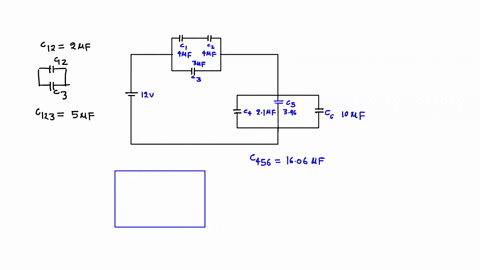

Consider the circuit shown in the figure below. Calculate the voltage across the capacitor C6 assuming the following potential source and capacitor values: V0 = 12.0 V C1 = 4.0 µF, C2 = 4.0 µF, C3 = 3.0 µF C4 = 2.10 µF, C5 = 3.96 µF, C6 = 10.0 µF
Sahil K.
(a) Determine the equivalent capacitance of the circuit shown in Fig. 24-27. (b) If $C_{1}=C_{2}=2 C_{3}=24.0 \mu \mathrm{F}$, how much charge is stored on each capacitor when $V=35.0 \mathrm{~V} ?$
For the circuit of Figure P23.43, a. What is the equivalent capacitance? b. What is the charge on each capacitor? 4.0 μF 12 V 3.0 μF 6.0 μF FIGURE P23.43
Mrinal R.
