For the circuit shown in the figure, calculate the following. (Assume V = 7.26 V and R = 6.54 Ω.) (a) the current in the 2.00-Ω resistor (Enter the magnitude.) I (b) the potential difference between points a and b, ΔV = Vb - Va V
Added by Steven H.
Step 1
54Ω(i2 - i1) - 2Ωi1 = 0 - Simplifying the equation, we get: 6.54i2 - 8.54i1 = 12 Show more…
Show all steps
Your feedback will help us improve your experience
Supratim Pal and 73 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
For the circuit shown in Figure $\mathrm{P} 28.25$ , calculate (a) the current in the $2.00-\Omega$ resistor and $(\mathrm{b})$ the potential difference between points $a$ and $b .$
Consider the circuit shown in Figure $\mathrm{P} 18.9$. Find (a) the current in the $20.0-\Omega$ resistor and $(b)$ the potential difference between points $a$ and $b$.

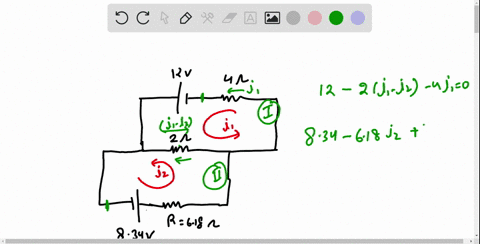

For the circuit shown in the figure, calculate the following (Assume Ε = 8.34 V and R = 6.18 Ή.) (a) the current in the 2.00-Ή resistor (Enter the magnitude.) (b) the potential difference between points a and b, ΔV = Vb - Va
