Question

3. For the resistor circuit shown R1 = R, R2 = 2R, R3 = 3R, and R4 = 6R. (a) Find the equivalent resistance in terms of R. R1 R2 R3 R4 V0 (b) The power supply provides a potential difference V0 = 12 V. If the current I1 passing through R1 equals 6A, determine the currents I2, I3, and I4 passing through each of the remaining resistors and the value of R.

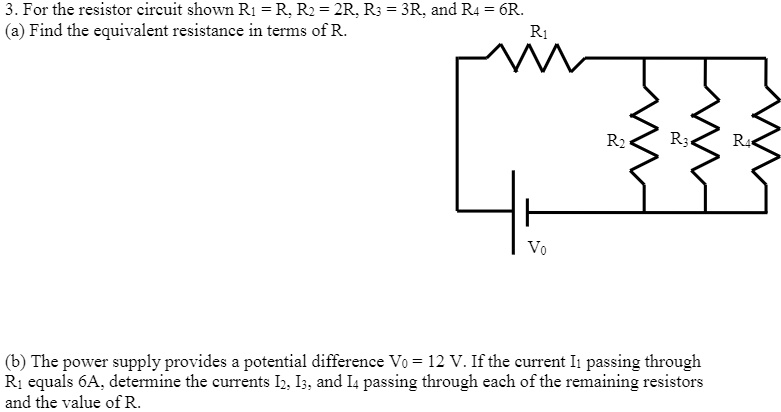

          3. For the resistor circuit shown R1 = R, R2 = 2R, R3 = 3R, and R4 = 6R.
(a) Find the equivalent resistance in terms of R.
R1
R2 R3 R4
V0
(b) The power supply provides a potential difference V0 = 12 V. If the current I1 passing through R1 equals 6A, determine the currents I2, I3, and I4 passing through each of the remaining resistors and the value of R.

3. For the resistor circuit shown R1 = R, R2 = 2R, R3 = 3R, and R4 = 6R.
(a) Find the equivalent resistance in terms of R.
R1
R2 R3 R4
V0
(b) The power supply provides a potential difference V0 = 12 V. If the current I1 passing through R1 equals 6A, determine the currents I2, I3, and I4 passing through each of the remaining resistors and the value of R.

Added by Alejandro F.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Sri K

03/05/2023

Step 1

We can see that resistors $R_2$ and $R_3$ are in parallel, so their equivalent resistance is given by: $$\frac{1}{R_{23}} = \frac{1}{2R} + \frac{1}{3R} = \frac{5}{6R}$$ So, $R_{23} = \frac{6R}{5}$. Now, we have resistors $R_1$, $R_{23}$, and $R_4$ in series, so Show more…

Show all steps

Thanks for your feedback!

3. For the resistor circuit shown R1 = R, R2 = 2R, R3 = 3R, and R4 = 6R. (a) Find the equivalent resistance in terms of R. (b) The power supply provides a potential difference V0 = 12 V. If the current I1 passing through R1 equals 6A, determine the currents I2, I3, and I4 passing through each of the remaining resistors and the value of R.
