4. Fresnel diffraction is observed behind a wire 0.4 mm thick, which is placed 2 m from the light source of wavelength of 500 nm and 2 m from the screen. a. Find the irradiance on the axis of the screen at point P and b. Find the irradiance at the upper edge of the geometrical shadow of the diffracting wire at point P' in terms of unobstructed intensity.
Added by Bego-A C.
Close
Step 1
The problem states that the wire is placed 2 m from the light source and 2 m from the screen. Since the wire is placed in between the light source and the screen, the distance from the wire to the screen is also 2 m. Show more…
Show all steps
Your feedback will help us improve your experience
Tim Thornhill and 93 other Calculus 3 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

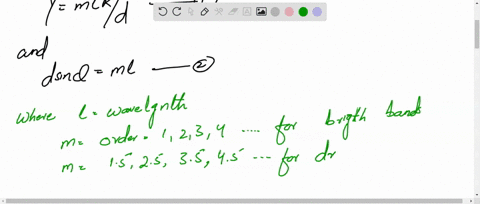

Fresnel diffraction is observed behind a wire $0.37 \mathrm{mm}$ thick, which is placed $2 \mathrm{m}$ from the light source and $3 \mathrm{m}$ from the screen. If light of wavelength $630 \mathrm{nm}$ is used, compute, using the Cornu spiral, the irradiance of the diffraction pattern on the axis at the screen. Express the answer as some number times the unobstructed irradiance there.
Abid H.

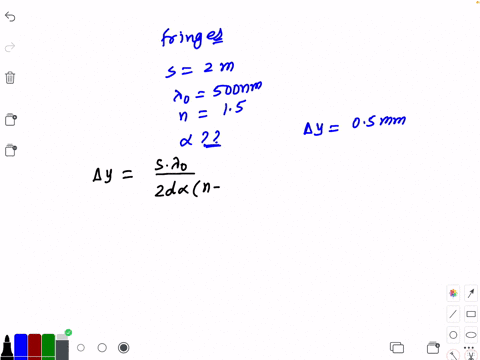

The Fresnel biprism is used to obtain fringes from a point source that is placed $2 \mathrm{m}$ from the screen, and the prism is midway between the source and the screen. Let the wavelength of the light be $\lambda_{0}=500 \mathrm{nm}$ and the index of refraction of the glass be $n=1.5 .$ What is the prism angle, if the separation of the fringes is $0.5 \mathrm{mm} ?$
single-slit diffraction is produced using a monochromatic light source $(435.8 \mathrm{nm})$ at $25 \mathrm{cm}$ from the slit. The slit is $0.75 \mathrm{mm}$ wide. A detector is placed on the axis, $25 \mathrm{cm}$ from the slit. a. Ensure that far-field diffraction is invalid in this case. b. Nevertheless, determine the distance above the axis at which single-slit Fraunhofer diffraction predicts the first zero in irradiance. c. Then calculate the irradiance at the same point, using Fresnel diffraction and the Cornu spiral. Express the result in terms of the unobstructed irradiance.
