Calculate the power delivered to the 1.00-? resistor in the shown circuit below. a. 2.18 W b. 4.65 W c. 1.33 W d. 2.50 W e. 5.00 W The correct answer is: 1.33 W

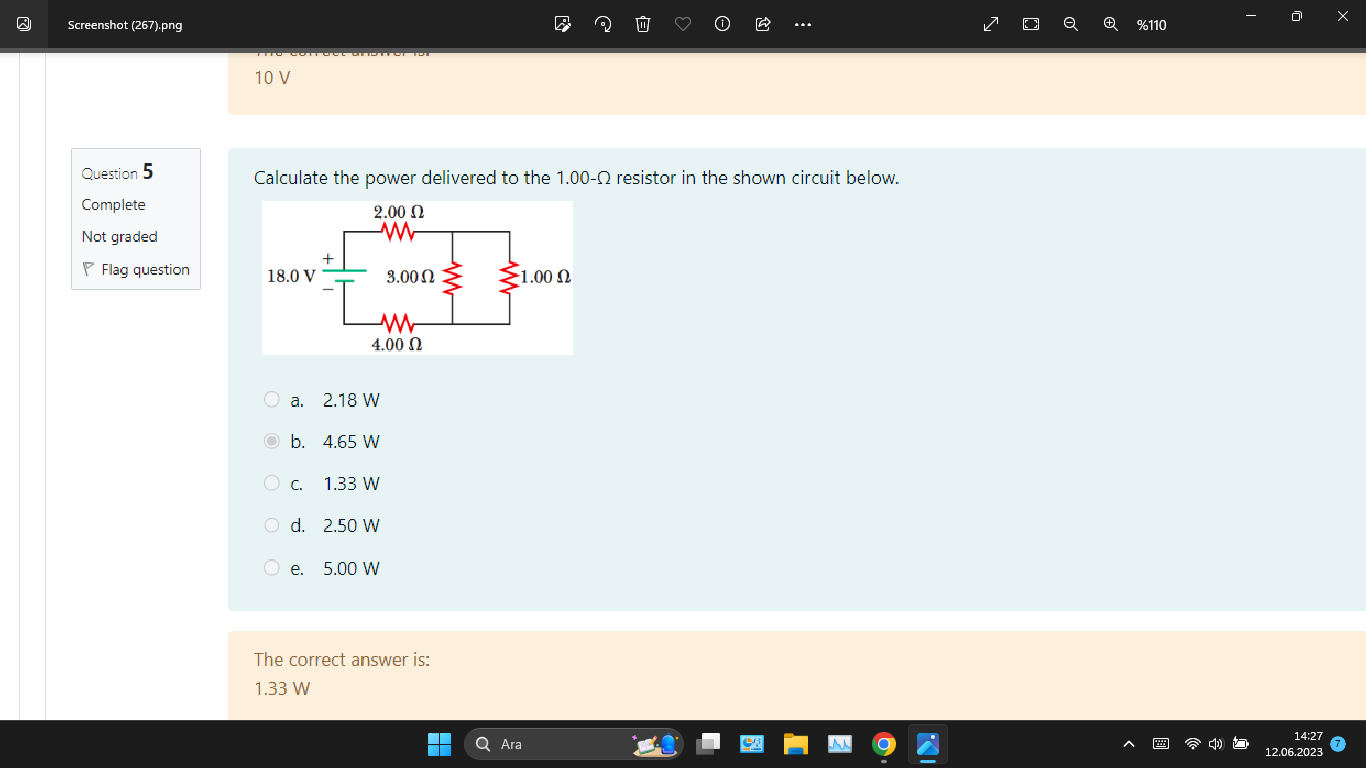

          Calculate the power delivered to the 1.00-? resistor in the shown circuit below.
a. 2.18 W
b. 4.65 W
c. 1.33 W
d. 2.50 W
e. 5.00 W
The correct answer is: 1.33 W
Calculate the power delivered to the 1.00-? resistor in the shown circuit below. a. 2.18 W b. 4.65 W c. 1.33 W d. 2.50 W e. 5.00 W The correct answer is: 1.33 W

Added by Bora A.

Close

University Physics with Modern Physics
University Physics with Modern Physics
Hugh D. Young 14th Edition
AceChat toggle button
Close icon
Ace pointing down

Please give Ace some feedback

Your feedback will help us improve your experience

Thumb up icon Thumb down icon
Thanks for your feedback!
Profile picture
How to get the answer
Close icon
Play audio
Feedback
Powered by NumerAI
Ivan Kochetkov Kathleen Carty
Danielle Fairburn verified

Vishal Gupta and 91 other subject Physics 102 Electricity and Magnetism educators are ready to help you.

Ask a new question
*

Labs

-

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs
*

Key Concepts

-
Key Concept
Premium Feature
Explore the core concept behind this problem.
Play button
Key Concept
Premium Feature
Explore the core concept behind this problem.
Your browser does not support the video tag.
*

Recommended Videos

-
how-to-solve-65

how to solve

Dave K.
can-u-solve-this-one

can u solve this one?

Vishal G.
solve-the-q-36

solve the Q

Vishal G.
*

Recommended Textbooks

-
University Physics with Modern Physics

University Physics with Modern Physics

Hugh D. Young 14th Edition
achievement 1,629 solutions
Physics: Principles with Applications

Physics: Principles with Applications

Douglas C. Giancoli 7th Edition
achievement 1,100 solutions
Fundamentals of Physics

Fundamentals of Physics

David Halliday, Robert Resnick , Jearl Walker 10th Edition
achievement 1,723 solutions
*

Transcript

-
00:01 Here in this given problem this is the mixed grouping of the resistors.
00:04 The first one the upper one this is 2 .00 ohm then the two resistors are in parallel 3 .00 ohm and this 1 .00 ohm these two are in parallel and then the fourth one this is 4 .00 ohm and the battery providing a voltage 18 .0 volt.
00:31 First of all these two parallel resistors will be having a net value of 3 multiplied by 1 divided by 3 plus 1 means this is 3 by 4 ohm or we can say this is 0 .75 ohm.
00:48 Now this parallel combination is in series with 2 and 4.
00:53 So equivalent resistance now that will be given by 2 .00 plus 0 .75 for parallel combination plus 4 .00 ohm and it comes out to be equal to 6 .75 ohm...
