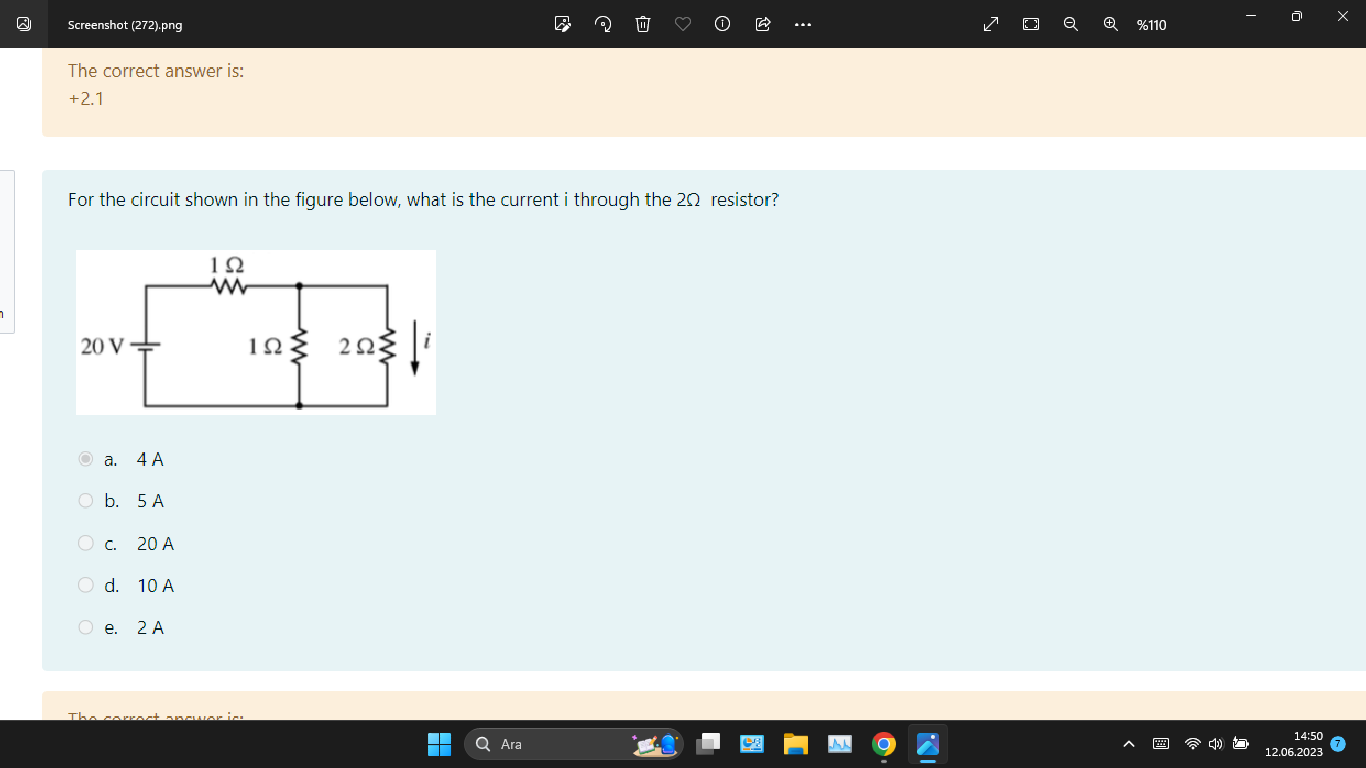

For the circuit shown in the figure below, what is the current i through the 2? resistor? a. 4 A b. 5 A c. 20 A d. 10 A e. 2 A
Added by Bora A.
Close
Step 1
First, we need to find the equivalent resistance of the circuit. We can see that the 6 Ω and 3 Ω resistors are in parallel, so their equivalent resistance (R1) can be calculated as: 1/R1 = 1/6 + 1/3 1/R1 = 1/2 R1 = 2 Ω Show more…
Show all steps
Your feedback will help us improve your experience
Dave Kratz and 80 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
How to get the answer
Vishal G.
The current through the circuit shown in figure is $1 \mathrm{~A}$. If each of $4 \Omega$ the resistors is replaced by $2 \Omega$ resistor, the current in circuit will become nearly (a) $1.11 \mathrm{~A}$ (b) $1.25 \mathrm{~A}$ (c) $1.34 \mathrm{~A}$ (d) $1.67 \mathrm{~A}$
Current Electricity
Round 2

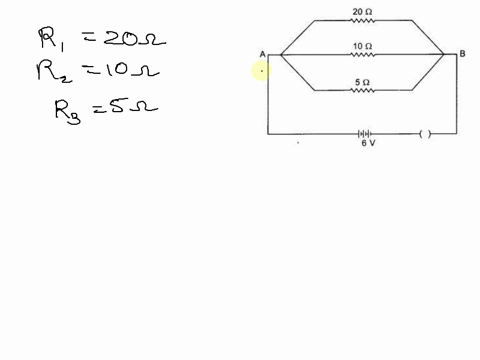

Calculate the current flows through the 10 Ω resistor in the following circuit. (a) 1.2 A (b) 0.6 A (c) 0.2 A (d) 2.0 A
