Find the capacitance (C) of the below given capacitor, which is filled with two different dielectric materials with dielectric constants of ?1 and ?2. The first dielectric has a thickness of d1 and the other one has a thickness of d2, such that d = d1 + d2, where d is the distance between the two plates of the capacitor. The surface area of the capacitor is A. a. C = ?0 A d1 d2 / (?1 d2 + ?2 d1) b. C = ?0 A ?1 ?2 / (?2 d1 + ?1 d2) c. C = ?0 A ?1^2 / (?2 d1 + ?1 d2) d. C = ?0 A ?2^2 / (?2 d1 + ?1 d2) e. C = ?0 A ?1 ?2 / (d1 d2 (?1 + ?2))
Added by Bora A.
Close
Step 1
First, we can consider the capacitor as two separate capacitors connected in series, one with dielectric material 1 and the other with dielectric material 2. Show more…
Show all steps
Your feedback will help us improve your experience
Ankur S and 91 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

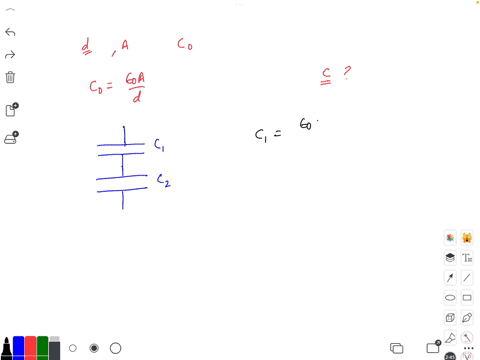

A parallel-plate capacitor (with a plate separation d and one plate surface area of A as seen in the figure) has a capacitance C0 in the absence of seen dielectric material. What is the capacitance when a dielectric slab with dielectric constant κ and thickness d/3 is inserted between the plates?
Ankur S.

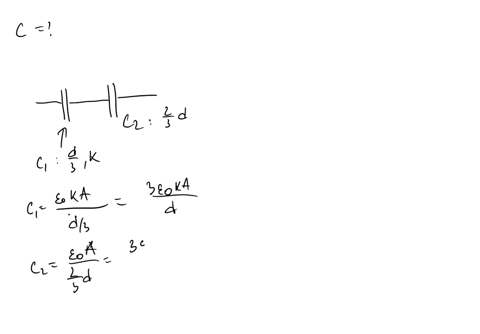

A parallel-plate capacitor (with a plate separation d and one plate surface area of A as seen in the figure) has a capacitance C0 in the absence of the seen dielectric material. What is the capacitance when a dielectric slab with dielectric constant κ and thickness d/3 is inserted between the plates?
