Chapter 24, Problem 04 GO FM radio stations use radio waves with frequencies from 88.0 to 108 MHz to broadcast their signals. Assuming that the inductance in Figure 24.4 has a value of $5.00 \times 10^{-7}$ H, determine the range of capacitance values that are needed so the antenna can pick up all the radio waves broadcasted by FM stations. Figure 24.4 $C_{min} =$ $C_{max} =$ GO TUTORIAL LINK TO TEXT LINK TO TEXT

          Chapter 24, Problem 04 GO
FM radio stations use radio waves with frequencies from 88.0 to 108 MHz to broadcast their signals. Assuming that the inductance in Figure 24.4
has a value of $5.00 \times 10^{-7}$ H, determine the range of capacitance values that are needed so the antenna can pick up all the radio waves
broadcasted by FM stations.
Figure 24.4
$C_{min} =$
$C_{max} =$
GO TUTORIAL
LINK TO TEXT
LINK TO TEXT

Chapter 24, Problem 04 GO
FM radio stations use radio waves with frequencies from 88.0 to 108 MHz to broadcast their signals. Assuming that the inductance in Figure 24.4
has a value of 5.00 × 10^-7 H, determine the range of capacitance values that are needed so the antenna can pick up all the radio waves
broadcasted by FM stations.
Figure 24.4
Cmin =
Cmax =
GO TUTORIAL
LINK TO TEXT
LINK TO TEXT

Added by Molly A.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Penny Riley

04/08/2022

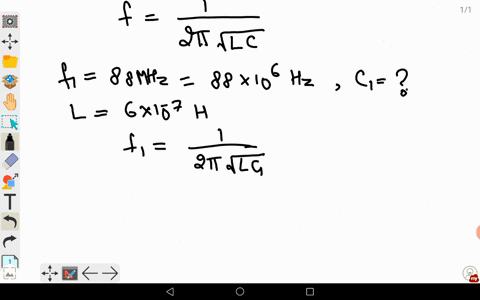

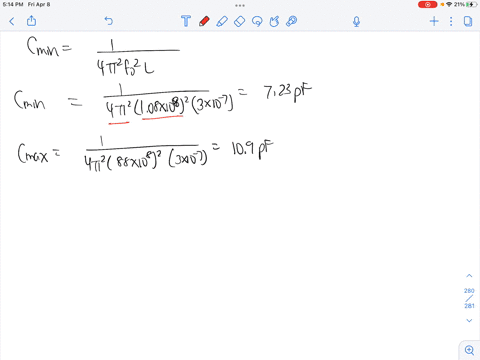

Step 1

To generate a step-by-step solution, please follow these instructions: Show more…

Show all steps

Thanks for your feedback!

I posted this question like 3 times and no one has answered it correctly... it is not 0.000___. PRITERVERSION Chapter 24, Problem 04 GO FM radio stations use radio waves with frequencies from 88.0 to 108 MHz to broadcast their signals. Assuming that the inductance in Figure 24.4 is broadcasted by FM stations. F CO TUTORIAL LINK TO TEXT LINKTOTEXI
