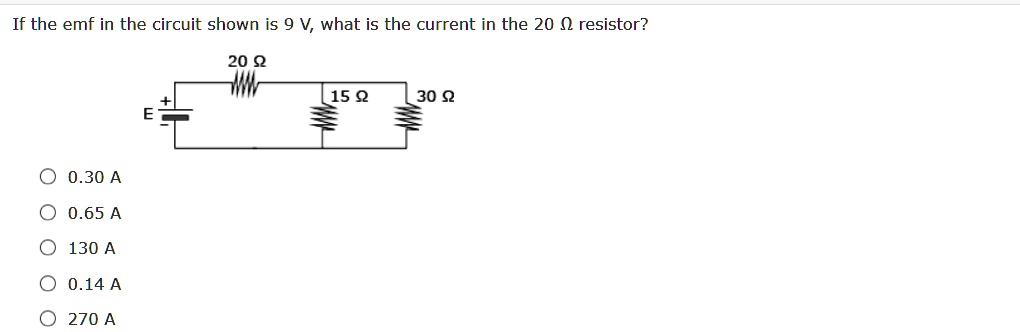

If the emf in the circuit shown is 9 V, what is the current in the 20 ? resistor? 20 ? 15 ? 30 ? 0.30 A 0.65 A 130 A 0.14 A 270 A
Added by Trinidad E.
Close
Step 1
Given resistors: 15 ohm, 30 ohm, 20 ohm 1/R_eq = 1/15 + 1/30 1/R_eq = 2/30 + 1/30 1/R_eq = 3/30 R_eq = 30/3 R_eq = 10 ohm Show more…
Show all steps
Your feedback will help us improve your experience
Madhur L and 57 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Consider emf ε = 20 V and R = 5 Ω for the circuit shown. The potential difference (in V) across the 30 Ω resistor is: R = 60 Ω 30 Ω 20 Ω 7.2 Ω 13.4 Ω 10 Ω 9.1 Ω
Sri K.

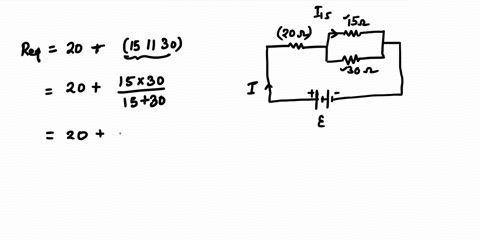

What is the current in the 15-Ω resistor when ε = 9.0 V? [NOTE: Resistors values are 20Ω, 15Ω, and 30Ω] 0.20 A 0.30 A 0.10 A 0.26 A 0.60 A
Adi S.
A voltage of $75 \mathrm{V}$ is placed across a $15-\Omega$ resistor. What is the current through the resistor?
Current Electricity
Using Electric Energy
