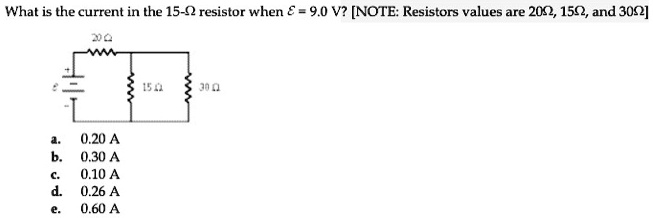

What is the current in the 15-? resistor when ? = 9.0 V? [NOTE: Resistors values are 20?, 15?, and 30?] 20 ? ? 15 ? 30 ? a. 0.20 A b. 0.30 A c. 0.10 A d. 0.26 A e. 0.60 A
Added by Mariano D.
Close
Step 1
Given resistors: 20 ohms, 15 ohms, 30 ohms Equivalent resistance, R_eq = 20 + (15*30)/(15+30) R_eq = 20 + (450)/(45) R_eq = 20 + 10 R_eq = 30 ohms Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 99 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
If the emf in the circuit shown is 9 V, what is the current in the 20 ̦ resistor? 20 ̦ 15 ̦ 30 ̦ 0.30 A 0.65 A 130 A 0.14 A 270 A
Madhur L.
If there are 10 Volts across a 5 Ohm resistor, what is the current?
Varsha A.
Find the current passing through each resistor in the circuit below: V1 = 18 V, V2 = 20 V, & V3 = 19 V. Current passing through the 2 Ω resistor Current passing through the 4 Ω resistor Current passing through the 5 Ω resistor
