Question

30° A B omega_{BC} = 10.39 ext{ rad/s} 0.3 m 0.3 m C E alpha_{BC} = 291.8 ext{ rad/}s^2 omega_{CD} = 6 ext{ rad/s} alpha_{CD} = 2 ext{ rad/}s^2 0.6 m D

          30°
A
B
omega_{BC} = 10.39 	ext{ rad/s}
0.3 m 0.3 m
C
E
alpha_{BC} = 291.8 	ext{ rad/}s^2
omega_{CD} = 6 	ext{ rad/s}
alpha_{CD} = 2 	ext{ rad/}s^2
0.6 m
D

Added by Tracy K.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Adi S

09/14/2023

Step 1

The linear velocity of a point in a rotating body is given by the equation v = r*w, where r is the distance from the point to the axis of rotation and w is the angular velocity. For point B, r = 0.3m and w = wAB = 6 rad/s, so vB = 0.3m * 6 rad/s = 1.8 Show more…

Show all steps

Thanks for your feedback!

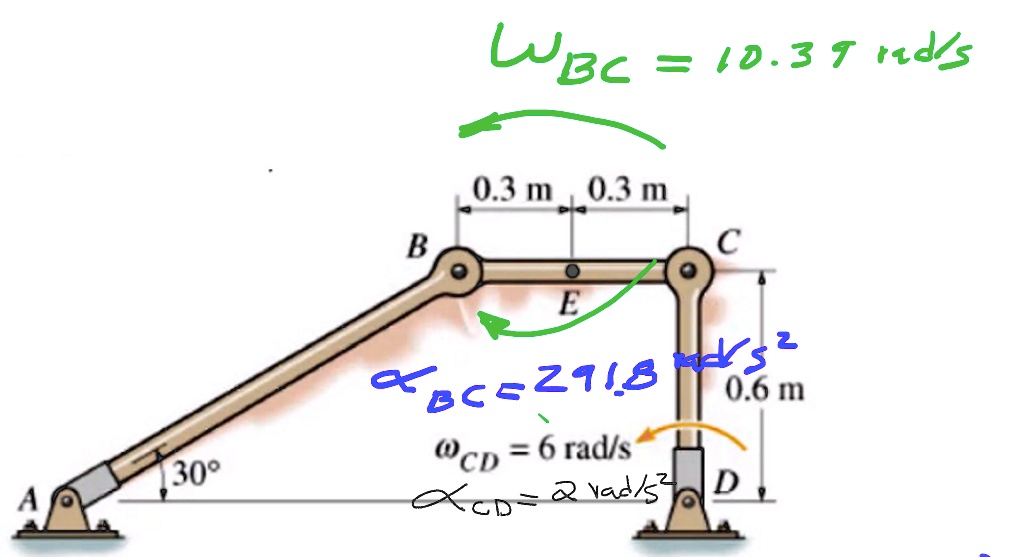

If the mechanism has angular velocities w_CD = 6 rad/s; w_AB = 6 rad/s; w_BC = 10.39 rad/s; and angular accelerations α_CD = 2 rad/s^2 and α_BC = 291.8 rad/s^2 (clockwise). Determine the acceleration at point E. Dimensions: 0.3 m, 0.3 m, 0.6 m; angle 30°.
