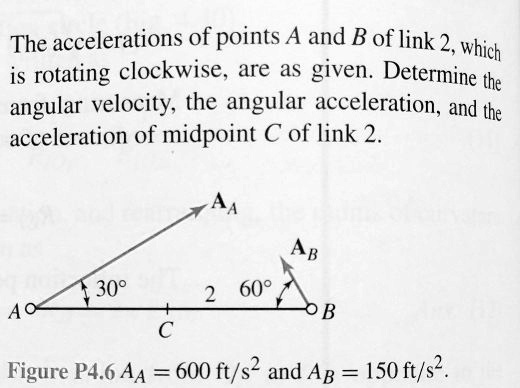

The accelerations of points A and B of link 2, which is rotating clockwise, are as given. Determine the angular velocity, the angular acceleration, and the acceleration of midpoint C of link 2. AA AB 30° 2 60° A C B Figure P4.6 AA = 600 ft/s^2 and AB = 150 ft/s^2.
Added by Brett M.
Close
Step 1
- \( A_A = 600 \, \text{ft/s}^2 \) (acceleration of point A) - \( A_B = 150 \, \text{ft/s}^2 \) (acceleration of point B) - Length of link AB = 2 ft - Angles: \( \angle A = 30^\circ \), \( \angle B = 60^\circ \) Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 75 other Calculus 3 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

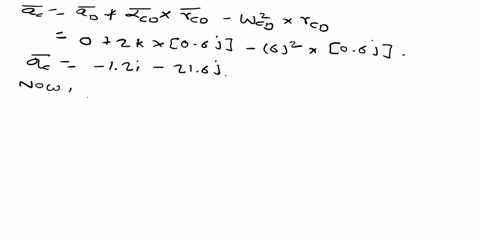

If the mechanism has angular velocities w_CD = 6 rad/s; w_AB = 6 rad/s; w_BC = 10.39 rad/s; and angular accelerations α_CD = 2 rad/s^2 and α_BC = 291.8 rad/s^2 (clockwise). Determine the acceleration at point E. Dimensions: 0.3 m, 0.3 m, 0.6 m; angle 30°.
Adi S.
The angular position of a rotating object is given by the equation θ = a + bt + ct^2 where a, b, and c are constants. Here a = 1.48 rad, b = 1.94 rad/s, and c = 3.06 rad/s^2. (a) What is the position of the object at t1 = 0 and t2 = 3.80 s? θ1 = 1.48 rad θ2 = 26.032 rad (b) What is the angular speed of the object at t1 = 0 and t2 = 3.80 s? ω1 = 1.94 rad/s ω2 = 11.652 rad/s (c) What is the angular acceleration of the object at t1 = 0 and t2 = 3.80 s? α1 = 3.06 rad/s^2 α2 = 3.06 rad/s^2
Karan S.
A wheel 2.00 $\mathrm{m}$ in diameter lies in a vertical plane and rotates with a constant angular acceleration of 4.00 $\mathrm{rad} / \mathrm{s}^{2}$ . The wheel starts at rest at $t=0,$ and the radius vector of a certain point $P$ on the rim makes an angle of $57.3^{\circ}$ with the horizontal at this time. At $t=$ $2.00 \mathrm{s},$ find $(\mathrm{a})$ the angular speed of the wheel, $(\mathrm{b})$ the tangential speed and the total acceleration of the point $P,$ and $(\mathrm{c})$ the angular position of the point $P .$
