In the circuit shown, ( I_{s}=41 mathrm{~mA}, R_{1}=2.1 k Omega, R_{2}=1.8 k Omega, L=62 mathrm{mH} ), and ( C=63 mathrm{nF} ). How much energy is stored in the capacitor in steady state (as ( t ightarrow infty ) )? Express your answer in units of microJoules ( (mu J) ).
Added by Sophia T.
Close
Step 1
Therefore, the current through the capacitor is zero, and the voltage across it is the same as the voltage across \( R_2 \). Show more…
Show all steps
Your feedback will help us improve your experience
Tavis Lam and 61 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
An LC circuit has an inductance of 16.9 mH and the capacitor is 16.6 μF. At time t = 0, the charge on the capacitor is 36.7 mA. What is the total energy in the circuit at this time? Enter your answer in J to two decimal places: numerical value; Do not include the units in the answer; enter only the numerical value.
Adi S.
Shaiju T.

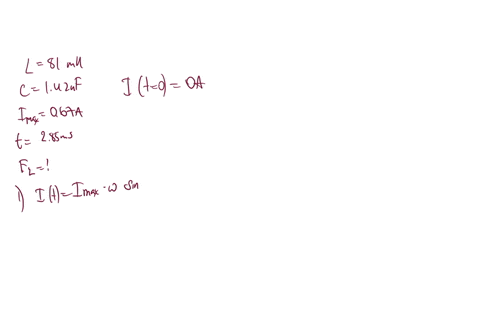

An L-C circuit containing an 81-mH inductor and a 1.42-nF capacitor oscillates with a maximum current of 0.67 A. Assuming the capacitor had its maximum charge at time t = 0, calculate the energy stored in the inductor after 2.85 ms of oscillation. a. 0.0202 j b. 0.0250 j c. 0.2019 j d. 0.0168 j e. 0.1788 j
