In the diagram of nucleic acid strands below select from the following labels and drag to the approximate location of the image feature you wish to label. There are some labels that should be left unused and there are some highlighted areas that may not get a label. helicase Primase DNA Polymerase I Okazaki Fragment DNA Polymerase III Single-stranded binding proteins Leading strand
Added by Jorge P.
Close
Step 1
Identify the leading strand: The leading strand is the strand of DNA that is synthesized continuously in the 5' to 3' direction. Drag the label "Leading strand" to the strand that is being synthesized continuously. Show more…
Show all steps
Your feedback will help us improve your experience
Hemal K and 89 other Biology educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Draw a diagram of replication and label the following: DNA directionality (ie. 5’ and 3’ ends), DNA polymerase I, DNA polymerase III, RNA primer, primase, Okazaki fragment (make 2 in your diagram!), helicase, single-strand binding proteins, DNA gyrase, DNA ligase, leading strand, and lagging strand. (6 points)
Madhur L.

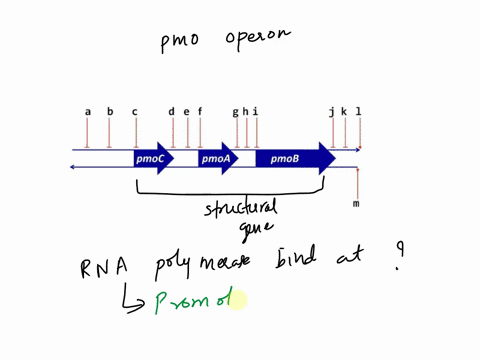

The undergraduate in the lab drew this diagram (Figure 3). Now you have to add the labels to the lettered sequences marked on the DNA. List them from a to m. Which lettered area best marks the area within the DNA sequence where RNA polymerase would bind to ensure transcription of pmoA, pmoB, and pmoC as a unit?
The Y-shaped figure below represents portions of the two template strands at a replication fork; note that the 3' end of one strand is specified. Indicate the following on the diagram. a) Where would you expect to find a helicase? b) Label the 5' and 3' ends of the template strands. c) Draw the leading strand at an appropriate region of the figure. Show direction, label 5' and 3' ends d) Draw two adjacent Okazaki fragments at an appropriate region of the figure. Show direction, label 5' and 3' ends. e) Indicate at least one place where you would expect to find an RNA primer
