In the figure below R=10 Ω and ε=13 V find the reading of ammeter and volt

Name: In the figure below R=10 Ω and ε=13 V find the reading of ammeter and volt
Uploaded: 2025-01-12T21:12:10-08:00
Duration: 2 min 21 s
Channel: Numerade
Description: In the figure below R=10 Ω and ε=13 V find the reading of ammeter and volt

Question

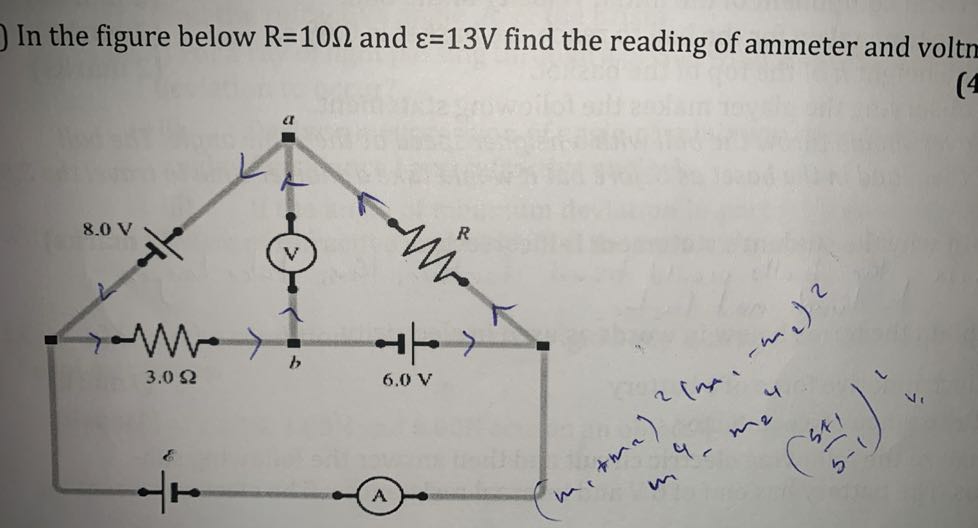

In the figure below R=10 Ω and ε=13  V find the reading of ammeter and volt

Sikandar Baig · Answer

All idea learners, let&#x27;s draw the circuit diagram first. We have a node here with this node. We

Sikandar Baig · Answer

All idea learners, let&#x27;s draw the circuit diagram first. We have a node here with this node. We

Zulfiqar Ali · Answer

root mean square voltage vr ms is equal to v divided by root 2 well we is given which is 100 so

Sachin Rao · Answer

Here in this question circuit given like this here a meter is connected and across the register

Ravindra Yadav · Answer

Hello everyone we are going to understand this question here given in the question even here we

Question

In the figure below \( \mathrm{R}=10 \Omega \) and \( \varepsilon=13 \mathrm{~V} \) find the reading of ammeter and volt
