R1 A 330 Ohms R2 470 Ohms B Vs 5 Volts R3 270 Ohms Fig. 1
Added by Joshua E.
Close
Step 1
When a short circuit is created across R2, it means that R2 is effectively bypassed and no current flows through it. Therefore, the voltage across R2 (VR2) will be zero. Show more…
Show all steps
Your feedback will help us improve your experience
Khoobchandra Agrawal and 73 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Consider the circuit given in the figure. If the current crossing the resistance R1 is 2A, Calculate, a) Resistance of the R1 b) Current in 4 ohm c) Power dissipated in the R1
Adi S.
The figure below shows five resistors connected between terminals a and b. (Consider the following values: R1 = 22.0 Ω, R2 = 4.80 Ω, R3 = 9.10 Ω, R4 = 1.90 Ω, R5 = 14.0 Ω.) (a) What is the equivalent resistance of this combination of resistors? Ω (b) What is the current through each resistor if a 36.0-V battery is connected across the terminals? I1 = A I2 = A I3 = A I4 = A I5 = A
Dan Y.

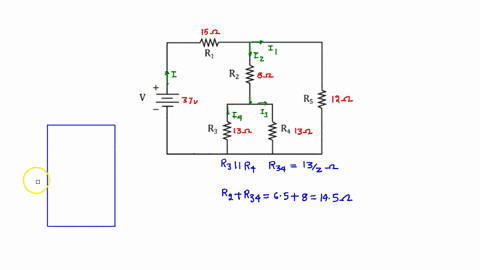

The figure shows a circuit consisting of a battery and five resistors, with resistances and the battery emf listed below. What is the potential difference across resistor R1? R1 = 15.0 Ω, R2 = 8.00 Ω, R3 = 13.0 Ω, R4 = 13.0 Ω, R5 = 12.0 Ω, and V = 37.0 V. Potential difference across R1:
Sahil K.
