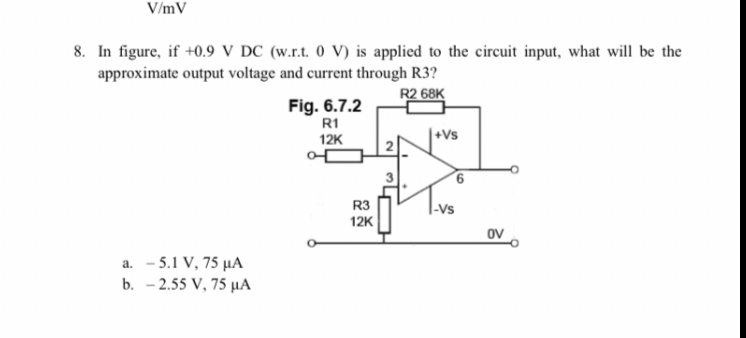

8. In figure, if +0.9 V DC (w.r.t. 0 V) is applied to the circuit input, what will be the approximate output voltage and current through R3? a. - 5.1 V, 75 ?A b. - 2.55 V, 75 ?A
Added by Sidhant M.
Close
Step 1
However, here's a general approach to solve this kind of problem: Show more…
Show all steps
Your feedback will help us improve your experience
Breanna Ollech and 95 other Physics 103 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

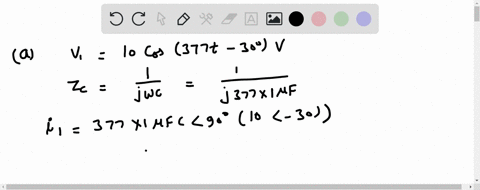

Calculate the current in the capacitor shown in Fig. $\mathrm{P} 8.6$ if the voltage input is (a) $v_{1}(t)=10 \cos \left(377 t-30^{\circ}\right) \mathrm{V}$ (b) $v_{2}(t)=12 \sin \left(377 t+60^{\circ}\right) \mathrm{V}$ Give the answers in both the time and frequency domains.
Use the circuit shown in Fig. $12.29 .$ The current in the circuit is $5.75 \mathrm{mA}$. Determine the indicated quantities.In The voltage across the resistor (between points $a$ and $b$ ).
Complex Numbers
An Application to Alternating-current (ac) Circuits
Find the currents and voltages in the circuit shown in Fig: 2.28. Practice Problem 2.8 Answer: V1 = 6 V, V2 = 4 V, U = 10 V, i = 3 A, i2 = 500 mA, and I = 1.25 A.
