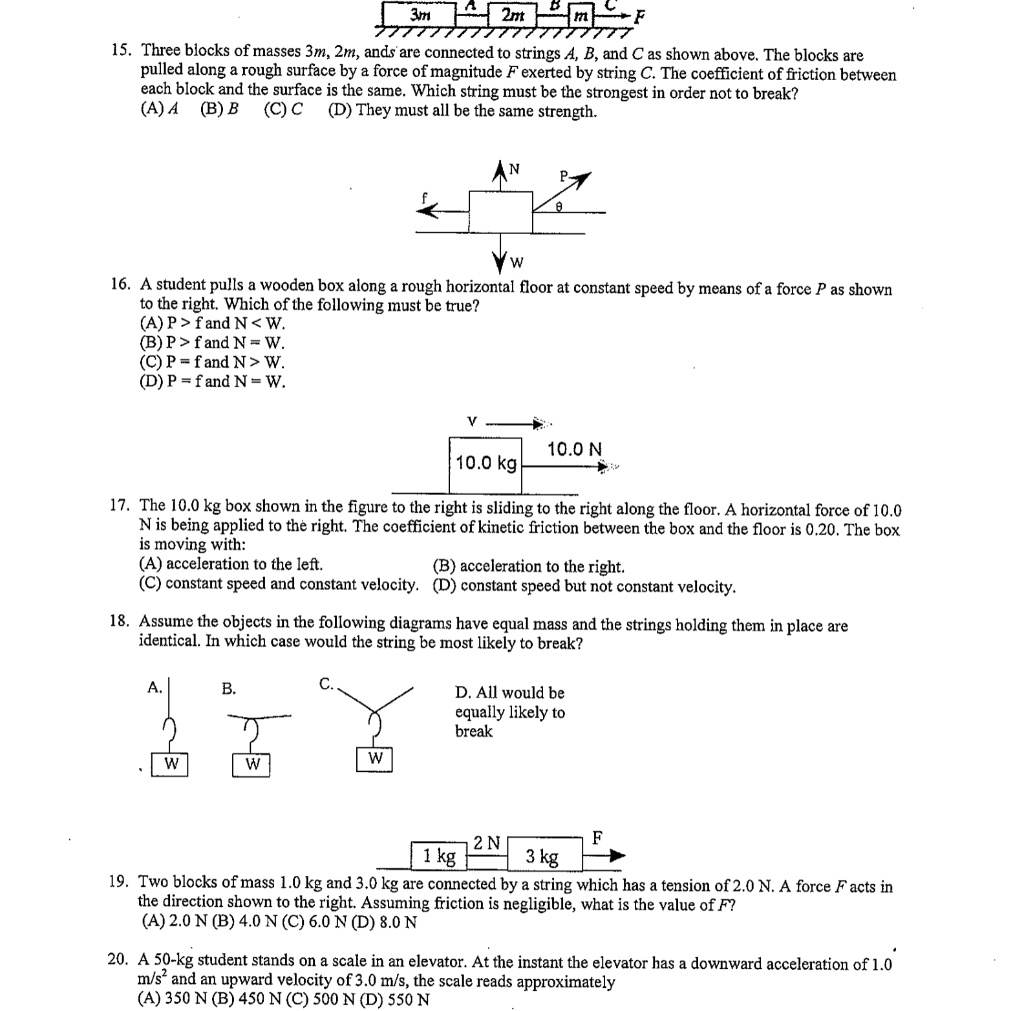

15. Three blocks of masses 3m, 2m, and m are connected to strings A, B, and C as shown above. The blocks are pulled along a rough surface by a force of magnitude F exerted by string C. The coefficient of friction between each block and the surface is the same. Which string must be the strongest in order not to break?
(A) A (B) B (C) C (D) They must all be the same strength.
16. A student pulls a wooden box along a rough horizontal floor at constant speed by means of a force P as shown to the right. Which of the following must be true?
(A) P > f and N < W.
(B) P > f and N = W.
(C) P = f and N > W.
(D) P = f and N = W.
17. The 10.0 kg box shown in the figure to the right is sliding to the right along the floor. A horizontal force of 10.0 N is being applied to the right. The coefficient of kinetic friction between the box and the floor is 0.20. The box is moving with:
(A) acceleration to the left.
(B) acceleration to the right.
(C) constant speed and constant velocity.
(D) constant speed but not constant velocity.
18. Assume the objects in the following diagrams have equal mass and the strings holding them in place are identical. In which case would the string be most likely to break?
D. All would be equally likely to break
19. Two blocks of mass 1.0 kg and 3.0 kg are connected by a string which has a tension of 2.0 N. A force F acts in the direction shown to the right. Assuming friction is negligible, what is the value of F?
(A) 2.0 N (B) 4.0 N (C) 6.0 N (D) 8.0 N
20. A 50-kg student stands on a scale in an elevator. At the instant the elevator has a downward acceleration of 1.0 m/s^2 and an upward velocity of 3.0 m/s, the scale reads approximately
(A) 350 N (B) 450 N (C) 500 N (D) 550 N
