The root-locus for the closed-loop continuous system KF(s) is given below. KF(s) = K(s+3) / s(s-2) K > 0 (a) Find the gain K value for which the root-locus crosses the imaginary axis or the system becomes stable.

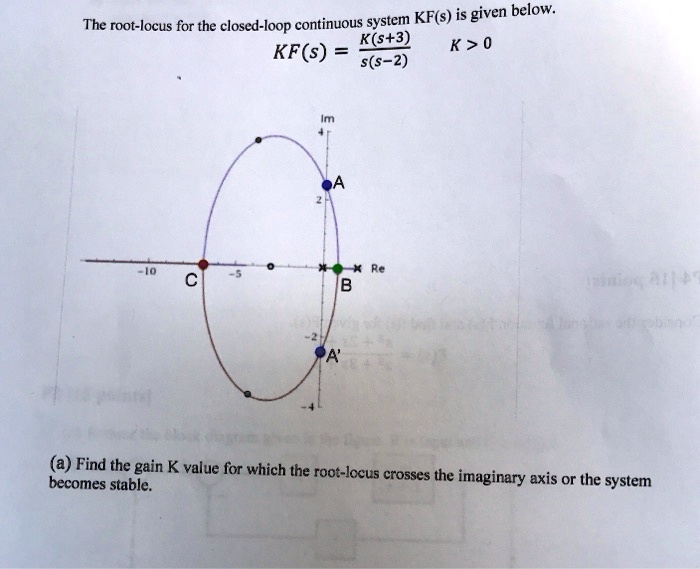

          The root-locus for the closed-loop continuous system KF(s) is given below.
KF(s) = K(s+3) / s(s-2)    K > 0
(a) Find the gain K value for which the root-locus crosses the imaginary axis or the system
becomes stable.

Added by Justin S.

Calculus: Early Transcendentals

James Stewart 8th Edition

Instant Answer

Solved by Expert Adi S

05/30/2023

Step 1

First, we need to find the open-loop transfer function, which is given by: $$ G(s) = \frac{K(s+3)KF(s)}{s(s-2)} $$ Show more…
